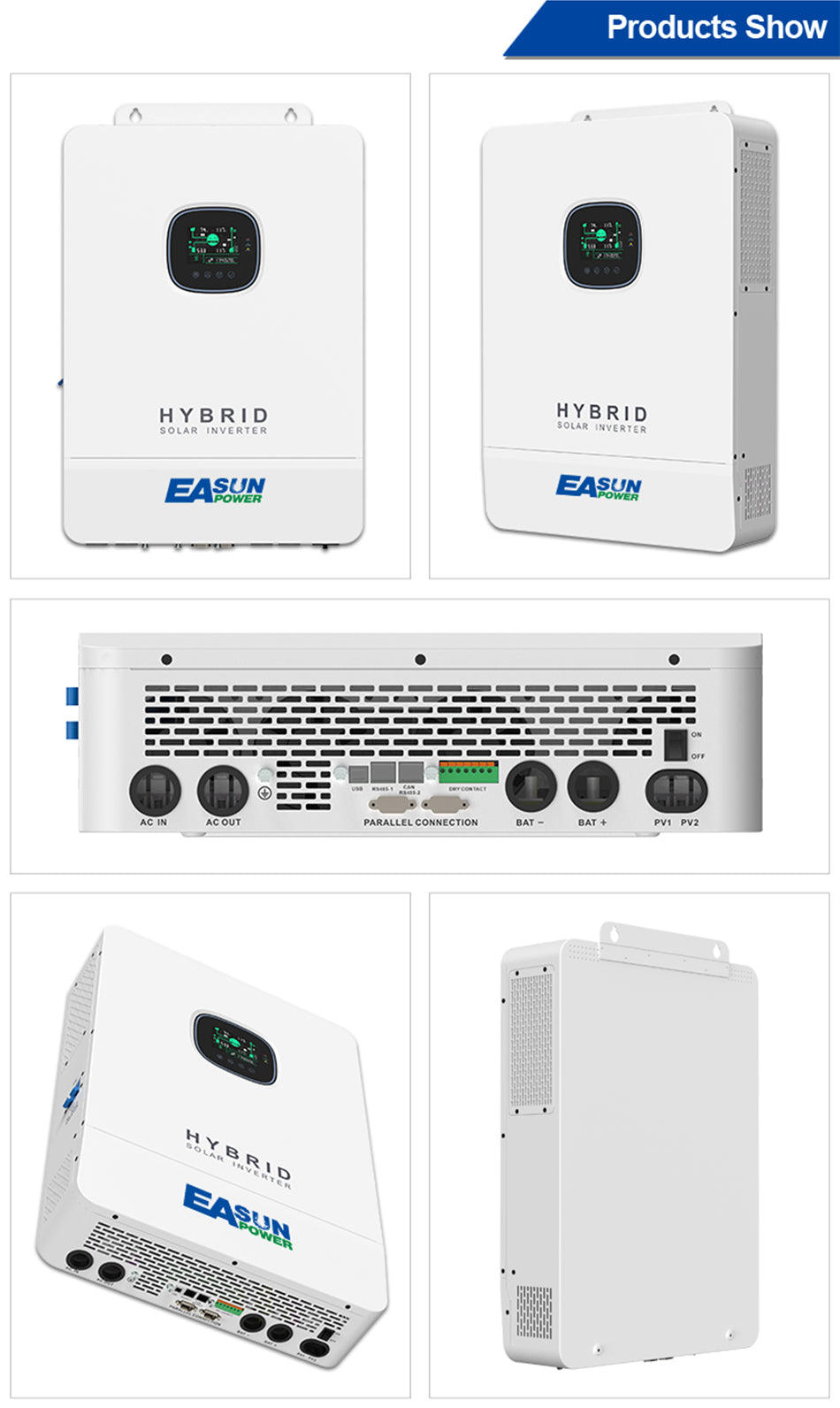

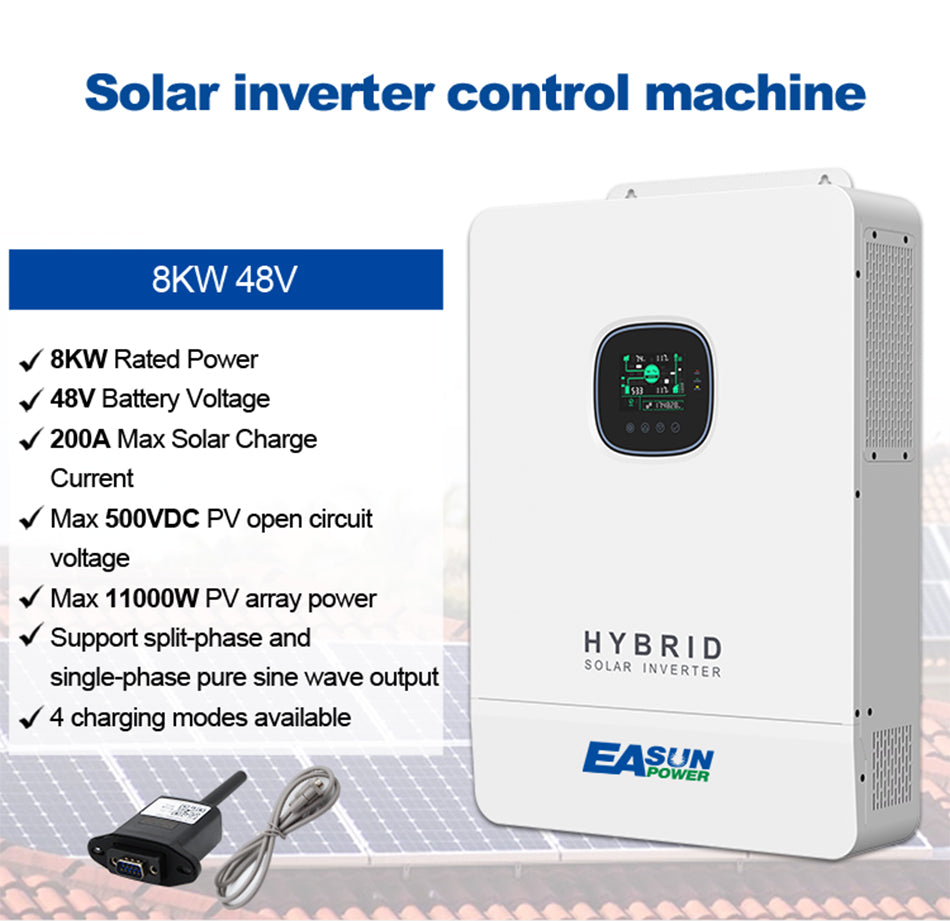

Easun Power 8KW 110/120vac Single Phase 110vac/220vac 48vdc 80A Dual 60A Battery Solar Inverter
Reliable Energy When and Where You Need It Most
100% DOD & 10-Year Lifespan: Offers 5000-15000 cycles and a 10-year lifespan, three times longer than lead-acid batteries.
Lightweight & Portable: Weighs 42 lbs, 1/3 of lead-acid batteries, with an energy density of 55.83Wh/lb, ideal for RVs, trolling motors, marine, and off-grid.
Higher Energy (2.56kWh): Equivalent to two 12V 100Ah batteries, supports 4P2S connections for 48V 400Ah setups, providing 20.48kWh energy.
Strict Protection & Fast Charging: Built-in 100A BMS safeguards against various faults. Operating temp: Charge 0°C50°C, Discharge -20°C60°C. Charges fully in 5 hours with a 29.2V 20A charger.
EV-Grade LiFePO4 Cells: GoldenMate 24V 100Ah battery uses UL-certified automotive-grade cells with high energy density, stable performance, and a 3% self-discharge rate.
The 24V 100Ah LiFePO4 battery delivers high energy density, long cycle life, and excellent performance. Ideal for wheelchairs, RVs, camping, marine, golf carts, trolling motors, home energy storage, computer backup, off-grid, solar, and wind energy systems
|

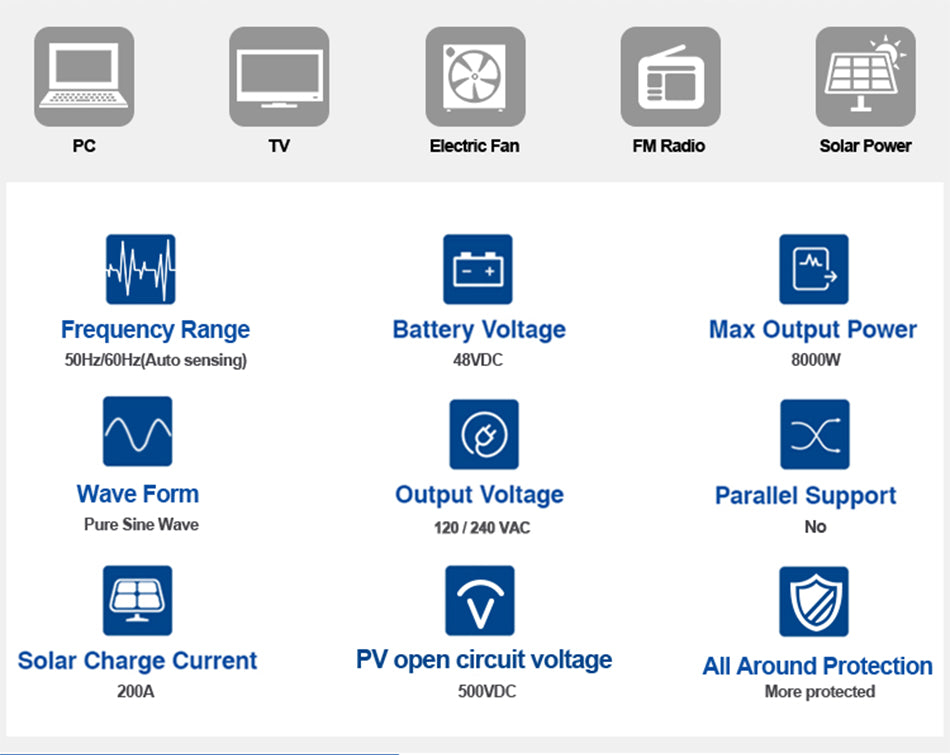

MODEL |
Isolar MLV 8KW-U |
Isolar MLV 10KW-U |
|
INVERTER OUTPUT |
||
|
Rated Output Power |
8,000W |
10,000W |
|
Max.Peak Power |
16,000W |
20,000W |
|
Rated Output Voltage |

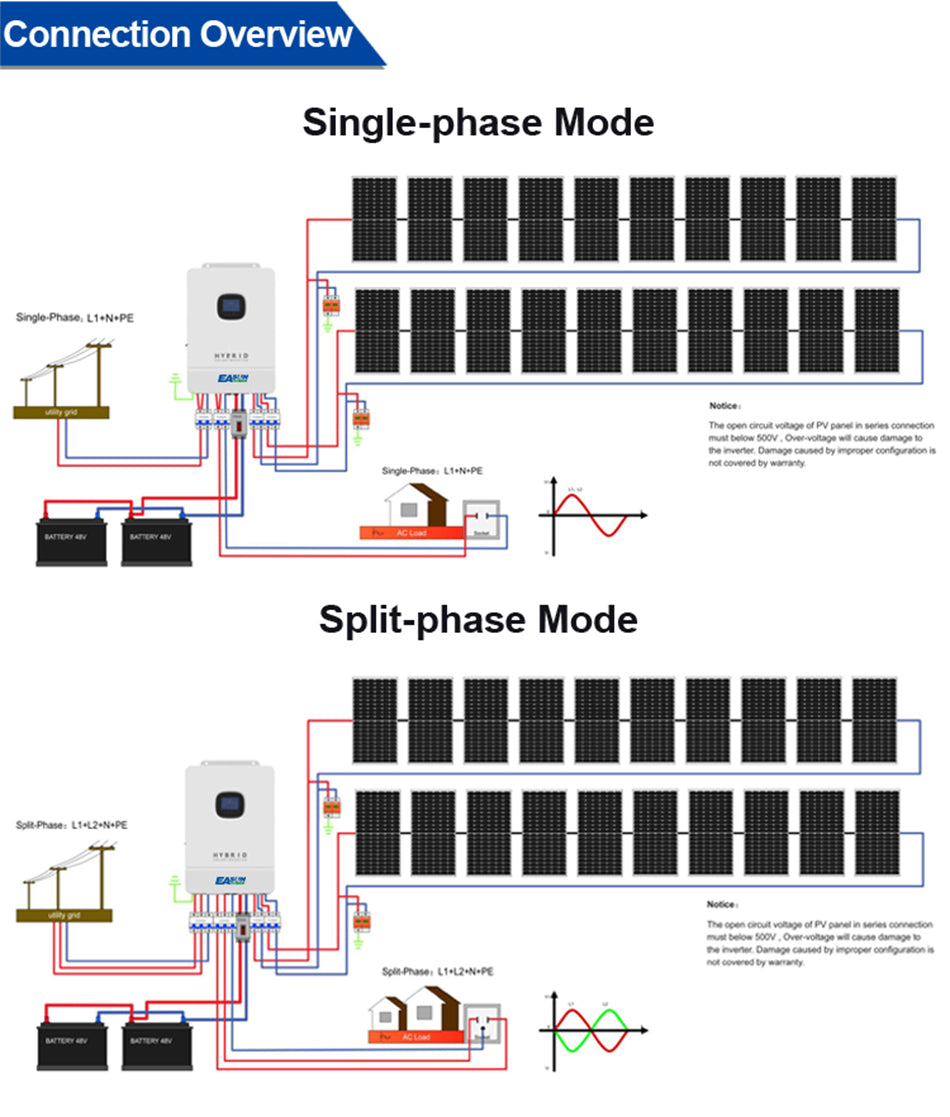

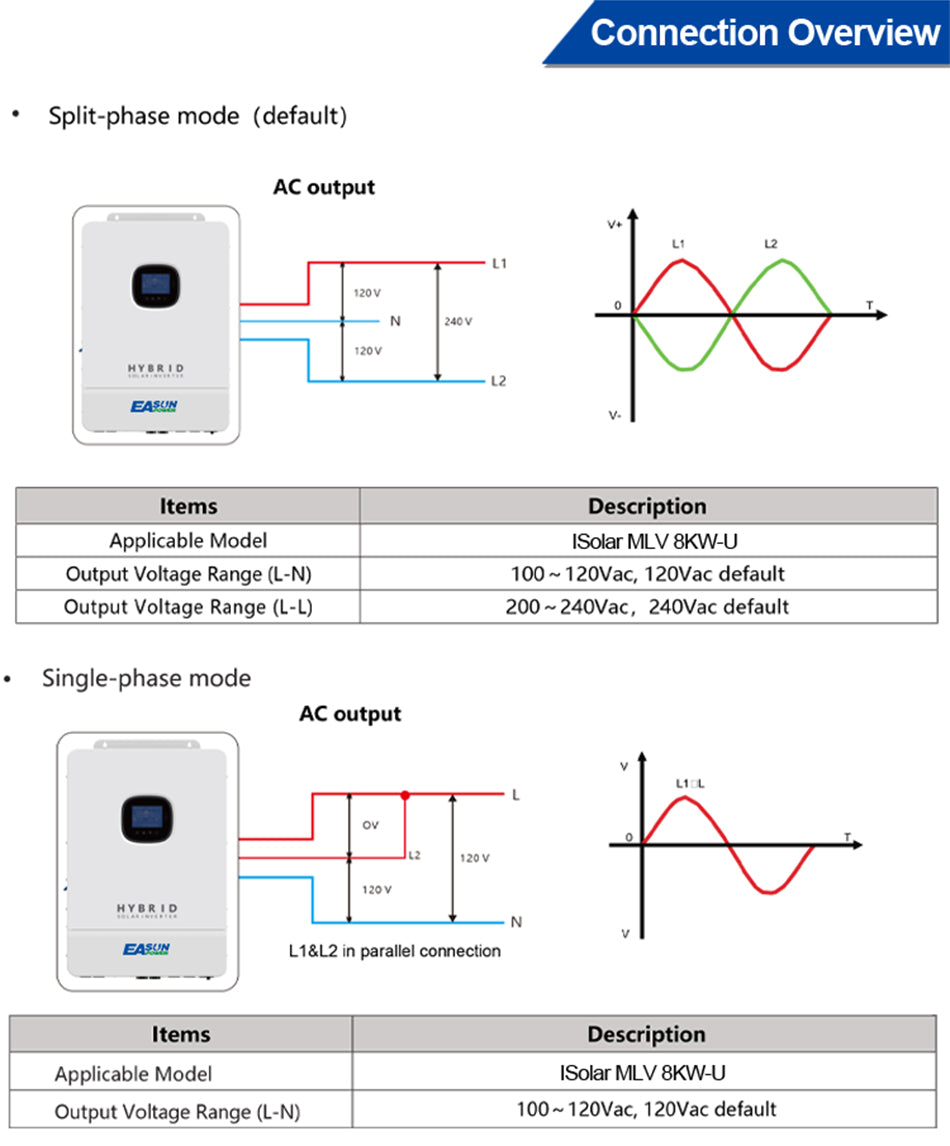

120/240Vac（split phase/single phase） |
|
|
Load Capacity of Motors |
5HP |
6HP |
|
Rated AC Frequency |
50/60Hz |
|
|
Waveform |
Pure Sine Wave |
|
|
Switch Time |
10ms（typical） |
|
|
Parallel capacity |
/ |
|
|
BATTERY |
||
|
Battery Type |
Li-ion / Lead-Acid / User Defined |
|
|

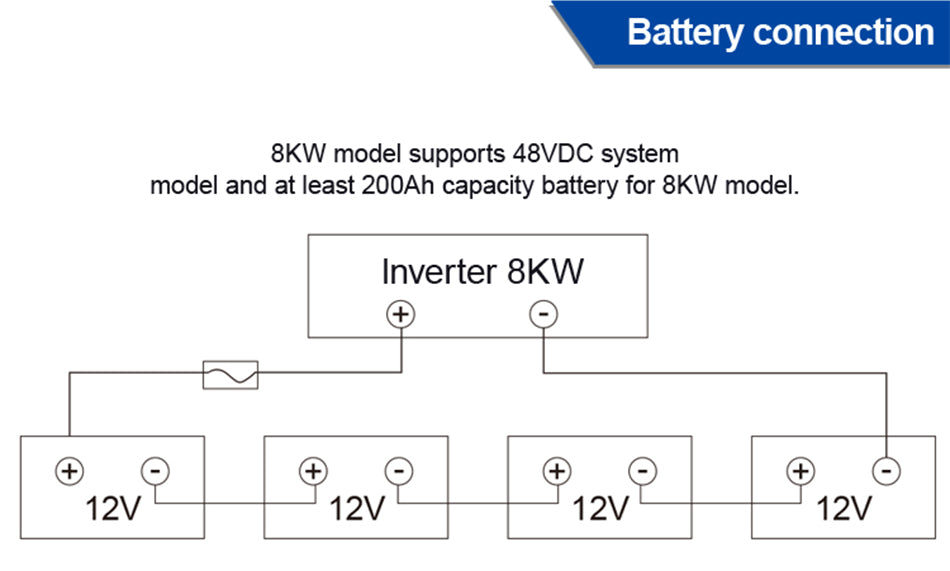

Rated Battery Voltage |
48Vdc |
|
|
Voltage Range |
40-60Vdc |
|
|
Max.MPPT Charging Current |
200A |
|
|
Max.Mains/Generat or Charging Current |
100A |
120A |
|
Max.Hybrid Charging Current |
180A |
200A |
|

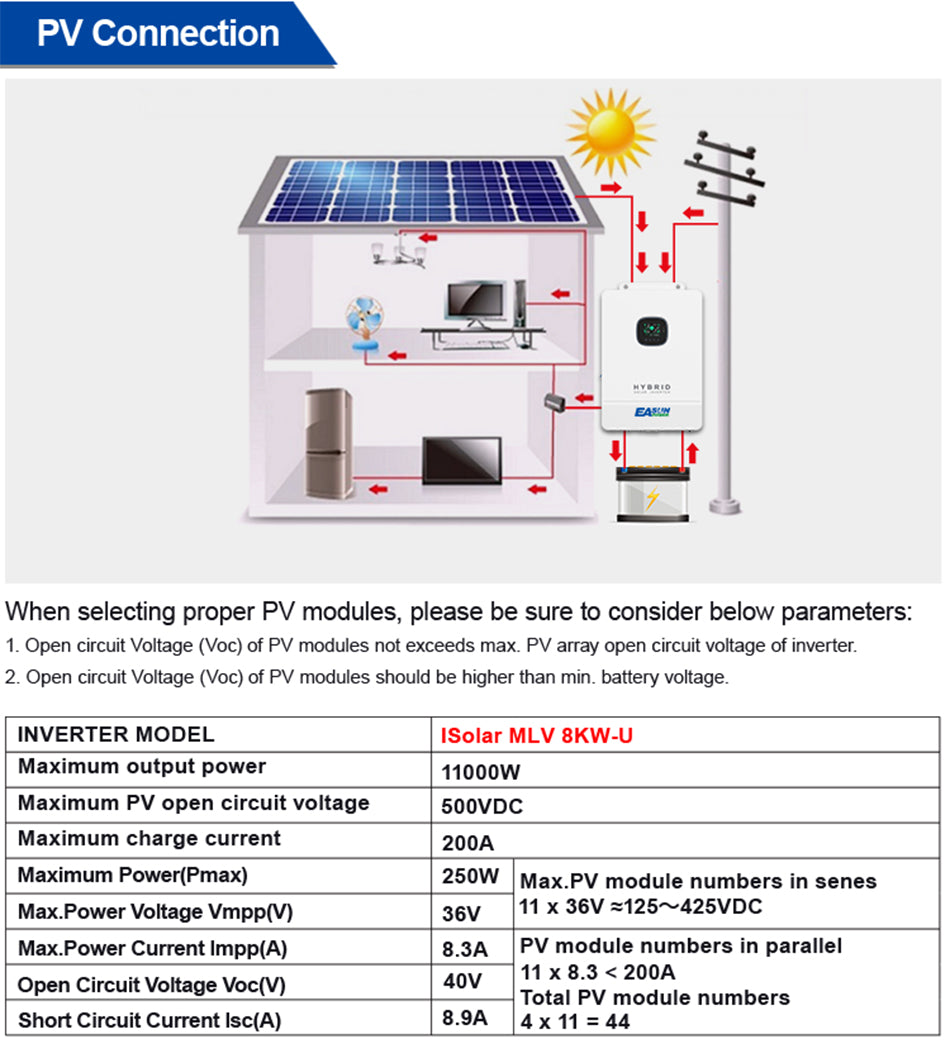

PV INPUT |
||
|
Num. of MPP Trackers |
2 |
|
|
Max.PV array power |
11,000W |
|
|
Max.input current |
22/22A |
|
|
Max.Voltage of Open Circuit |
500Vdc |
|
|
MPPT Voltage Range |
125-425Vdc |
|
|
MAINS / GENERATOR INPUT |
||
|
Input Voltage Range |
90-140Vac |
|
|
Frequency Range |
50/60Hz |
|
|
Bypass Overload Current |
63A |
|
|
EFFICIENCY |
||
|
MPPT Tracking Efficiency |
99.90% |
|
|
Max. Battery Inverter Efficiency |
92% |
|
|
GENERAL |
||
|
Dimensions |
620*435*130mm（2*1.4*0.4ft） |
|
|
Weight |
20kg（44lb） |
21kg（46.3lb） |
|
Protection Degree |
IP20，Indoor Only |
|
|
Operating Temperature Range |
-10~55℃,>45℃ derated（14~131℉，>113℉ derated） |
|
|
Noise |
<60dB |
|
|
Cooling Method |
Internal Fan |
|
|
Warranty |
2 Years |
|
|
COMMUNICATION |
||
|

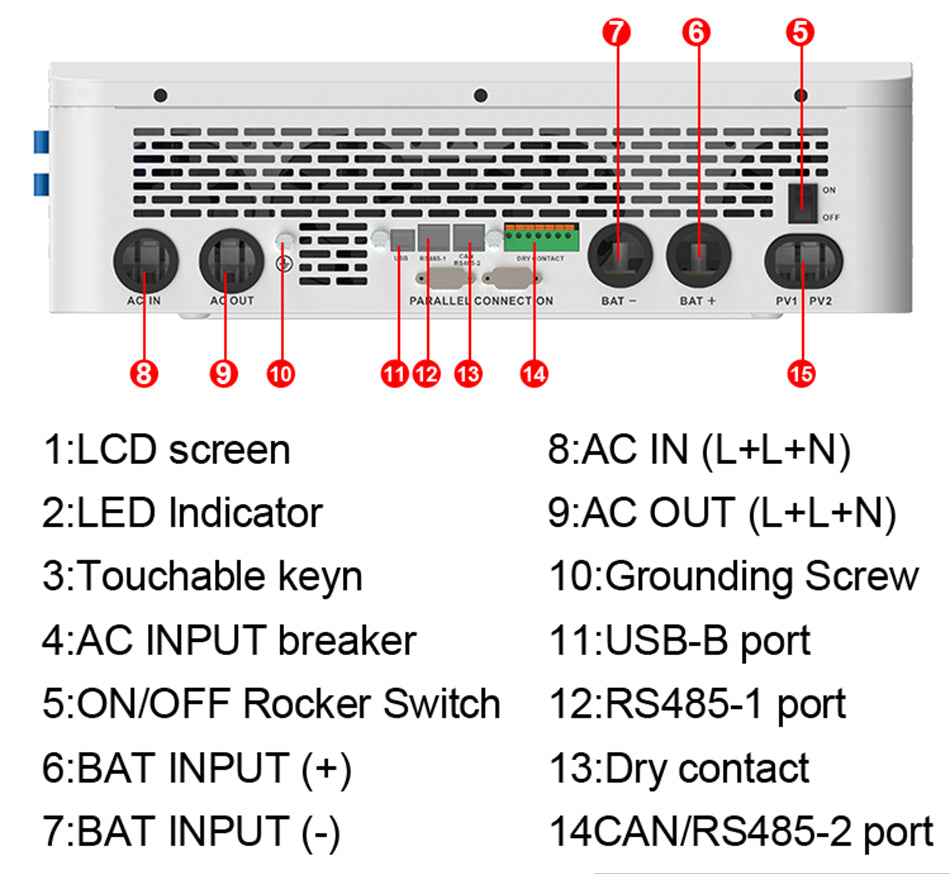

Embedded Interfaces |
RS485 / CAN / USB / Dry contact |
|
|
External Modules（Optional） |
Wi-Fi / GPRS |
|
|
CERTIFICATION |
||
|
Safety |
IEC62109-1, IEC62109-2,UL1741 |
|
|
EMC |
EN61000-6-1,EN61000-6-3, FCC15classB |
|
|
RoHS |
Yes |
|
Reliable Energy When and Where You Need It Most
100% DOD & 10-Year Lifespan: Offers 5000-15000 cycles and a 10-year lifespan, three times longer than lead-acid batteries.
Lightweight & Portable: Weighs 42 lbs, 1/3 of lead-acid batteries, with an energy density of 55.83Wh/lb, ideal for RVs, trolling motors, marine, and off-grid.
Higher Energy (2.56kWh): Equivalent to two 12V 100Ah batteries, supports 4P2S connections for 48V 400Ah setups, providing 20.48kWh energy.
Strict Protection & Fast Charging: Built-in 100A BMS safeguards against various faults. Operating temp: Charge 0°C50°C, Discharge -20°C60°C. Charges fully in 5 hours with a 29.2V 20A charger.
EV-Grade LiFePO4 Cells: GoldenMate 24V 100Ah battery uses UL-certified automotive-grade cells with high energy density, stable performance, and a 3% self-discharge rate.
The 24V 100Ah LiFePO4 battery delivers high energy density, long cycle life, and excellent performance. Ideal for wheelchairs, RVs, camping, marine, golf carts, trolling motors, home energy storage, computer backup, off-grid, solar, and wind energy systems
