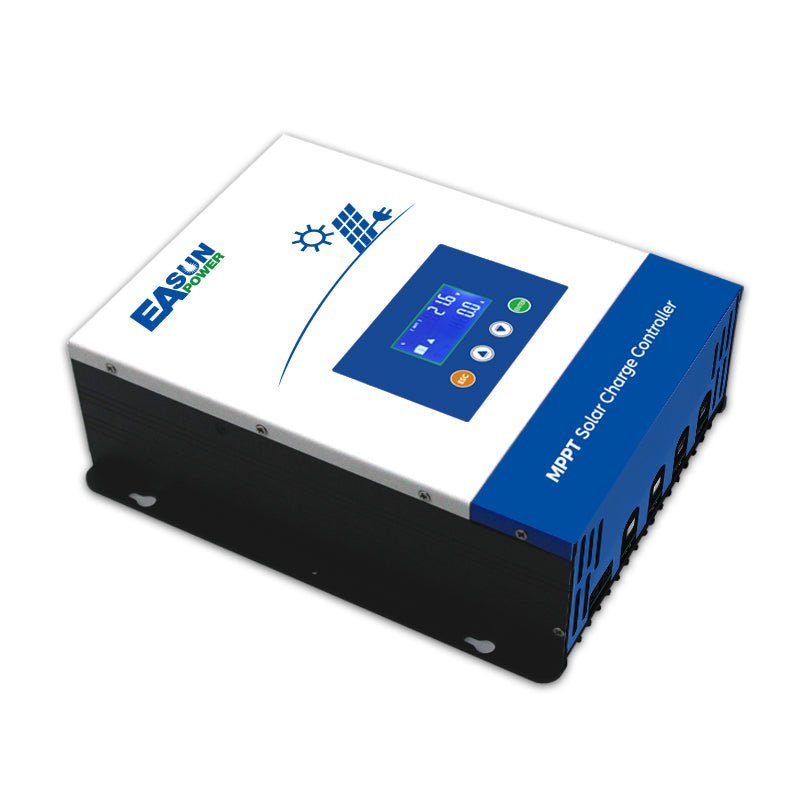

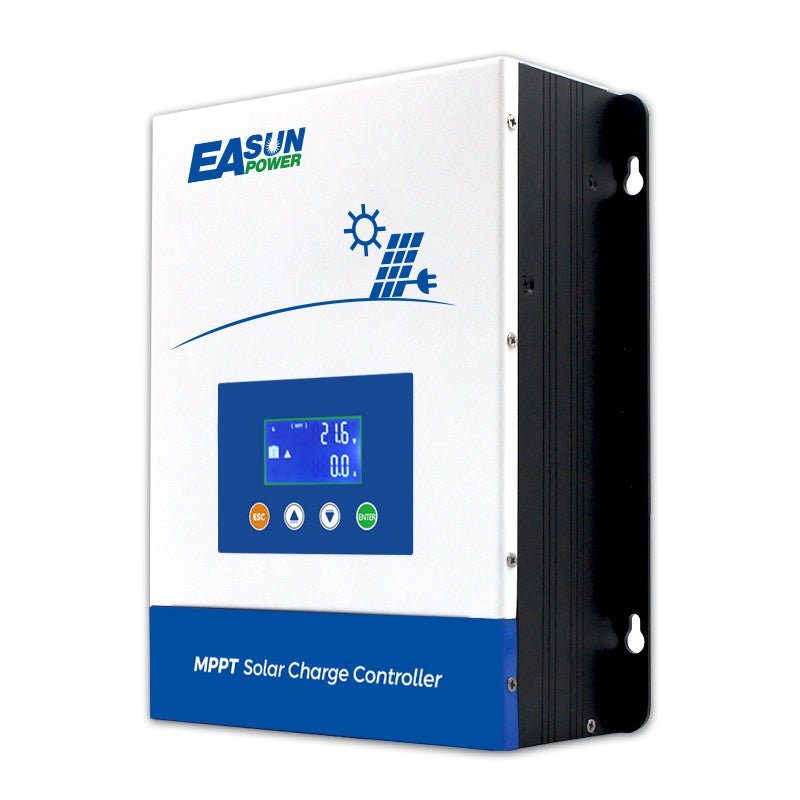

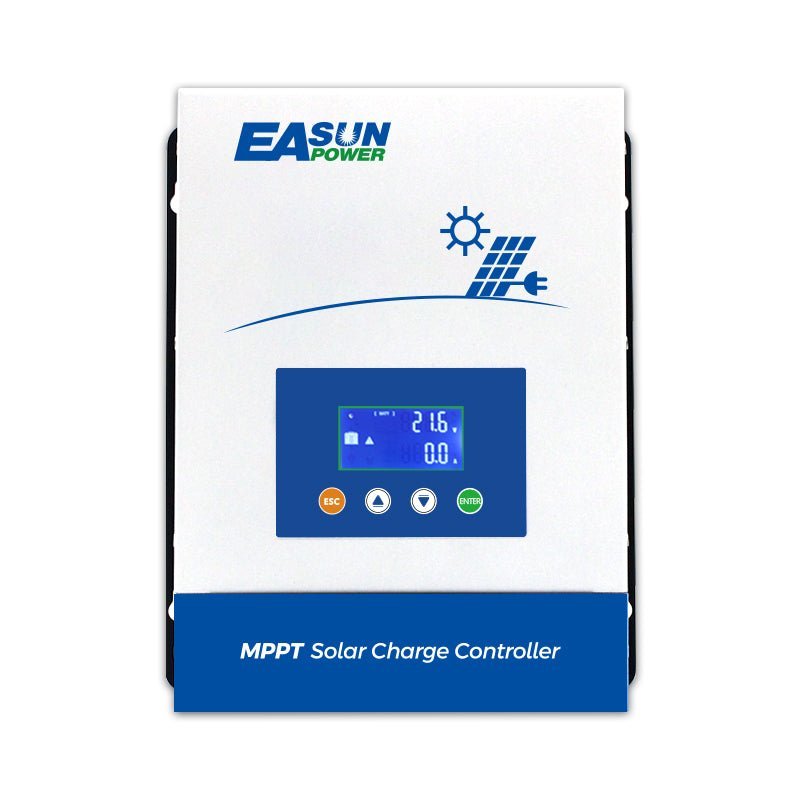

EASUN POWER 80A MPPT Solar Charger Controller 12V 24V 36V 48V Battery and solar panel solar charge regulator PV Input 150VOC

EASUN POWER 80A MPPT Solar Charger Controller 12V 24V 36V 48V Battery and solar panel solar charge regulator PV Input 150VOC

by EASUN POWER Official Store
Save 20% Save 20%
$205.00
$205.00 - $205.00
$205.00
$165.00
$165.00 - $165.00
$165.00
SKU AA-ICharger-MPPT-8048

Free shipping

Free returns

Secure payments

Features：

100% MPPT controller

Intelligent Maximum Power Point Tracking technology

Built-in DSP controller with high performance

Automatic battery voltage detection 12V/24V/36V/48V

Three-stage charging optimizes battery performance

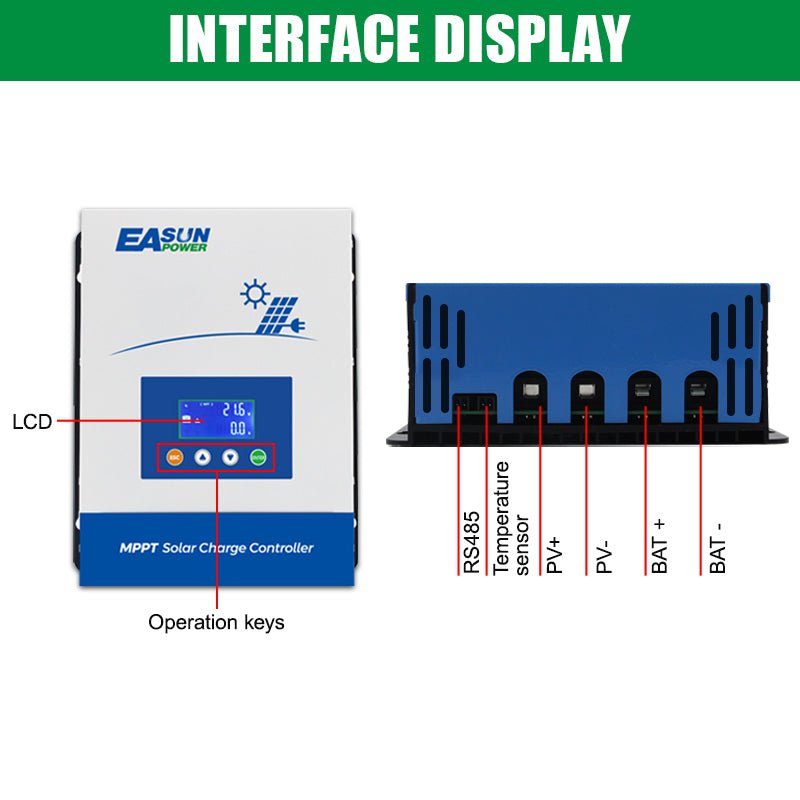

Multi-function LCD displays

Reverse polarity protection of solar panel

Overcharge protection

Can be mounted easily

Suitable for battery types of sealed lead acid, vented Gel, and Lithium battery

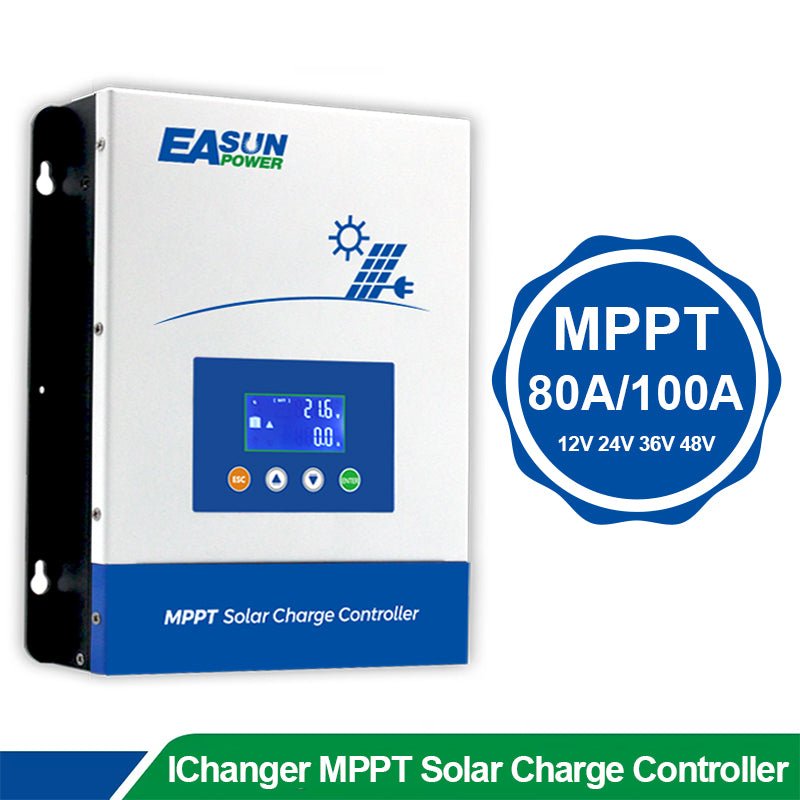

 Models ICharger MPPT 8048 ICharger MPPT 10048
Charging Mode

3-stage:constant Current(MPPT),
Constant Voltage, Floating

3-stage:constant Current(MPPT),
Constant Voltage, Floating
System Voltage 12/24/36/48/Auto 12/24/36/48/Auto
Max PV Input Power

1200W/12V;2400W/24V
3600W/36V;4800W/48V

1500W/12V;3000W/24V
4500W/36V;6000W/48V
Max PV Input Voltage 150 Voc 150 Voc
Battery Voltage Automatic Recognition

12V System(DC8.7V-DC15.5V)
24V System(DC16V-DC31V)
36V System(DC33V-DC41V)
48V System(DC42V-DC64V)

 12V System(DC8.7V-DC15.5V)
24V System(DC16V-DC31V)
36V System(DC33V-DC41V)
48V System(DC42V-DC64V)
Overcharging Protection Voltage

12V System(16V)
24V System(32V)
36V System(48V)
48V System(64V)

 12V System(16V)
24V System(32V)
36V System(48V)
48V System(64V)
Limited Current Protection 80A 100A
Max Efficiency ≥98.1% ≥99%
Auto Temperature Compensation
 -3mV/2V/℃ -3mV/2V/℃
Protection Function
Temperature Protection 80℃ 80℃

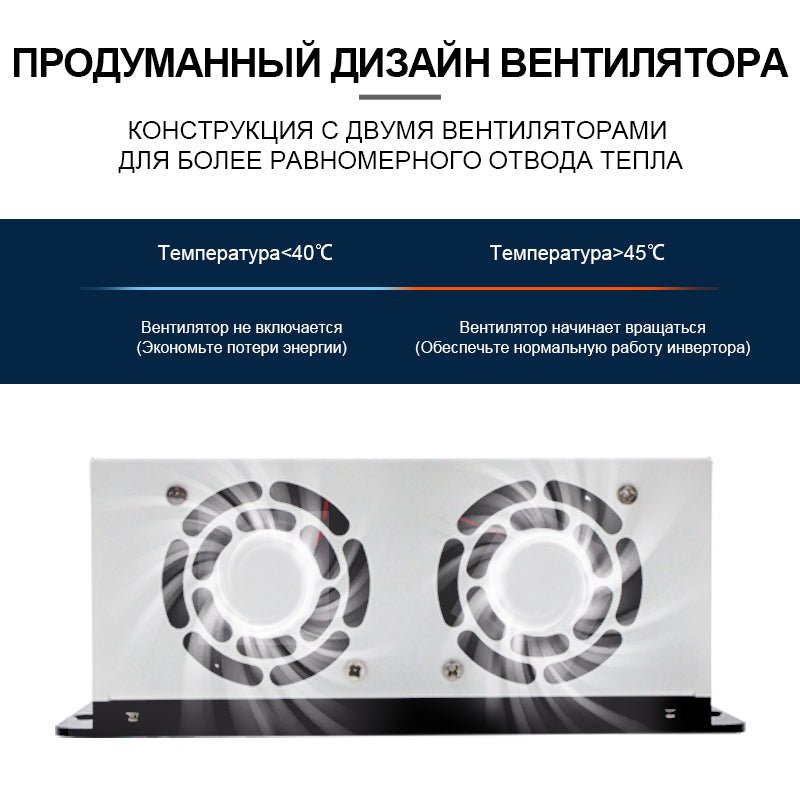

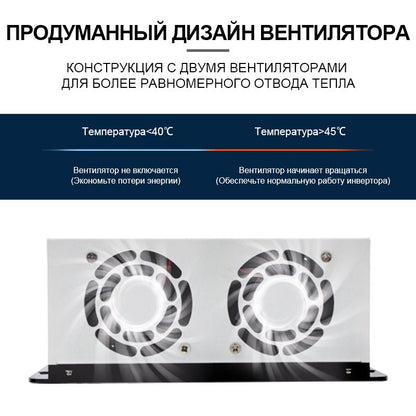

Fan-on Temperature ＞45℃ ＞45℃
Fan-off Temperature <40℃ <40℃

Properties
Size(mm) 252*201*80.3 252*201*80.3
Net Weight(KG) 2.28 2.49
Electromagnetic Compatibility Accord to EN61000,EN55022,EN55024 Accord to EN61000,EN55022,EN55024
Enclosure IP21 IP21
Environmental Temperature -20℃~+55℃ -20℃~+55℃
Storage Temperature -40℃~+75℃ -40℃~+75℃
