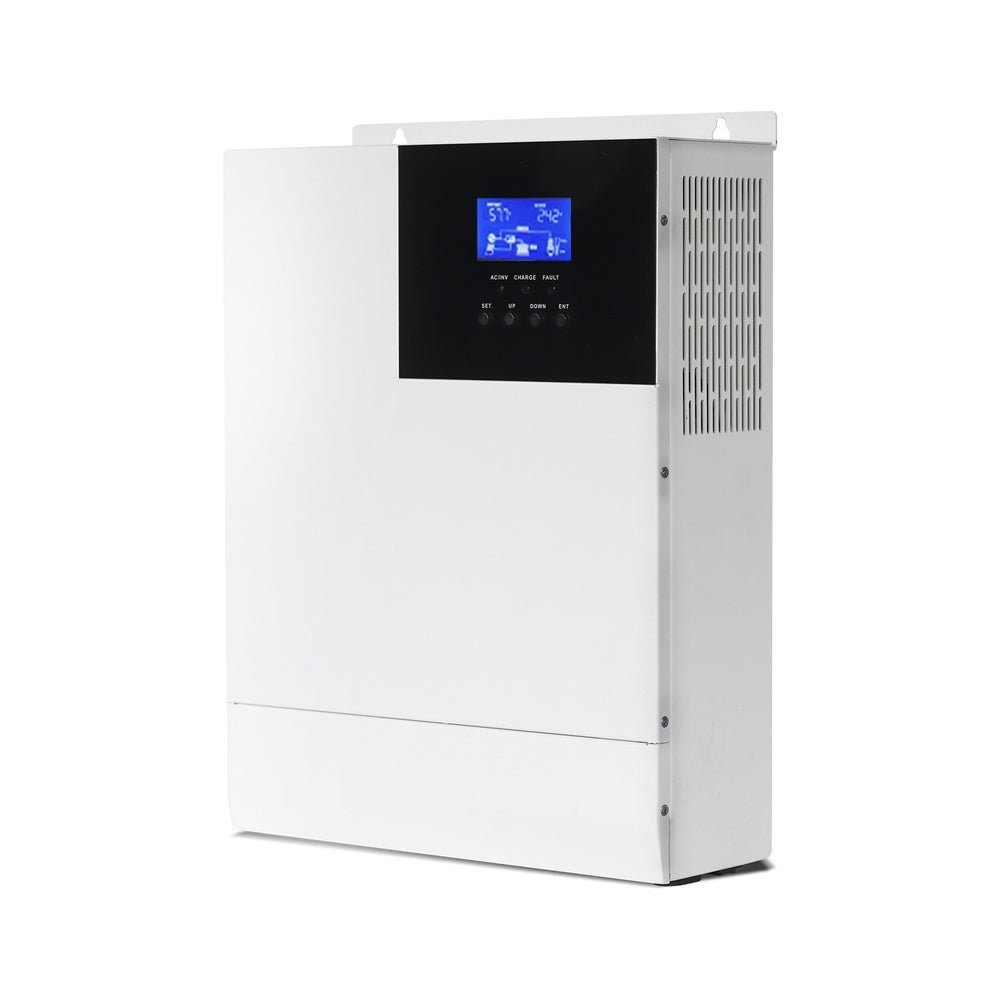

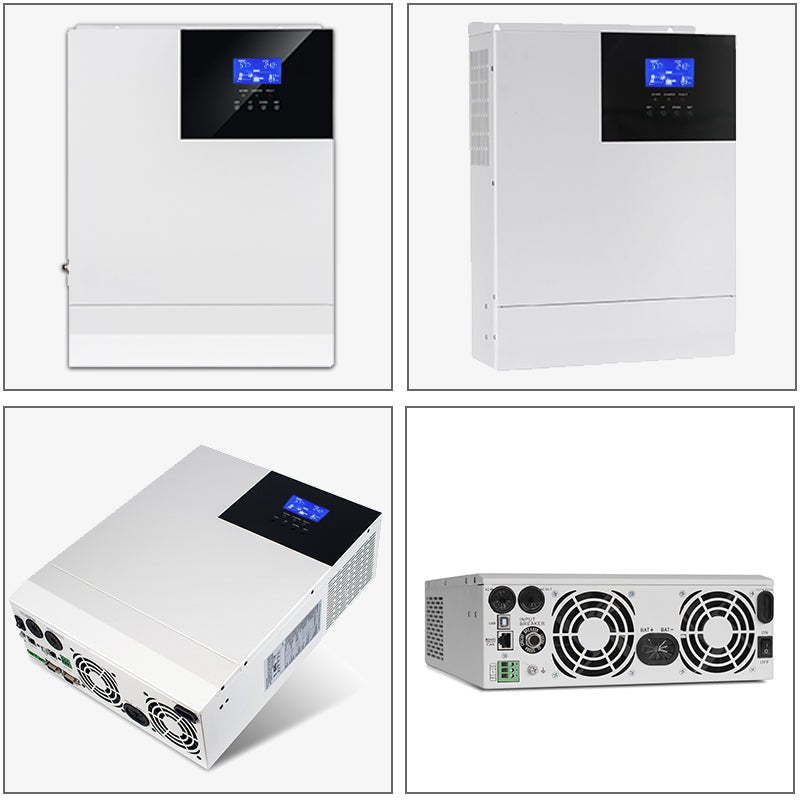

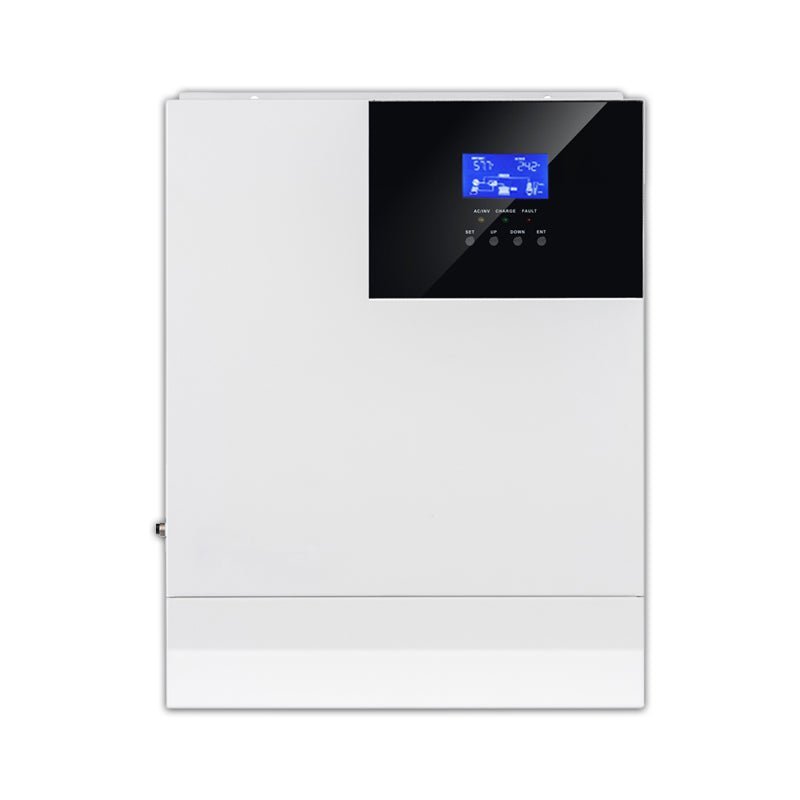

Easun Power 5KW Off-Grid Solar Inverter 110VAC/120VAC 48V 50HZ/60HZ Pure Sine Wave Inverter MPPT Charge Controller
Reliable Energy When and Where You Need It Most
100% DOD & 10-Year Lifespan: Offers 5000-15000 cycles and a 10-year lifespan, three times longer than lead-acid batteries.
Lightweight & Portable: Weighs 42 lbs, 1/3 of lead-acid batteries, with an energy density of 55.83Wh/lb, ideal for RVs, trolling motors, marine, and off-grid.
Higher Energy (2.56kWh): Equivalent to two 12V 100Ah batteries, supports 4P2S connections for 48V 400Ah setups, providing 20.48kWh energy.
Strict Protection & Fast Charging: Built-in 100A BMS safeguards against various faults. Operating temp: Charge 0°C50°C, Discharge -20°C60°C. Charges fully in 5 hours with a 29.2V 20A charger.
EV-Grade LiFePO4 Cells: GoldenMate 24V 100Ah battery uses UL-certified automotive-grade cells with high energy density, stable performance, and a 3% self-discharge rate.
The 24V 100Ah LiFePO4 battery delivers high energy density, long cycle life, and excellent performance. Ideal for wheelchairs, RVs, camping, marine, golf carts, trolling motors, home energy storage, computer backup, off-grid, solar, and wind energy systems

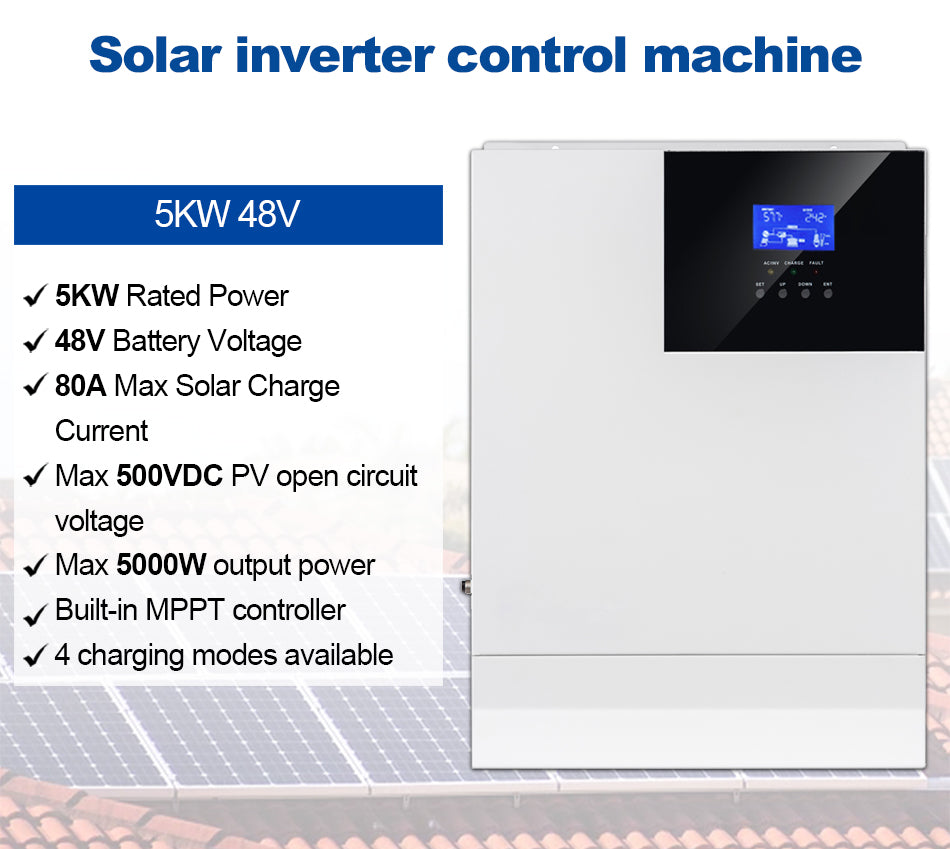

5000W Hybrid Solar Inverter AC 110V 120V DC 48V 50HZ/60HZ Pure Sine Wave Inverter MPPT Charge Controller
Overview:

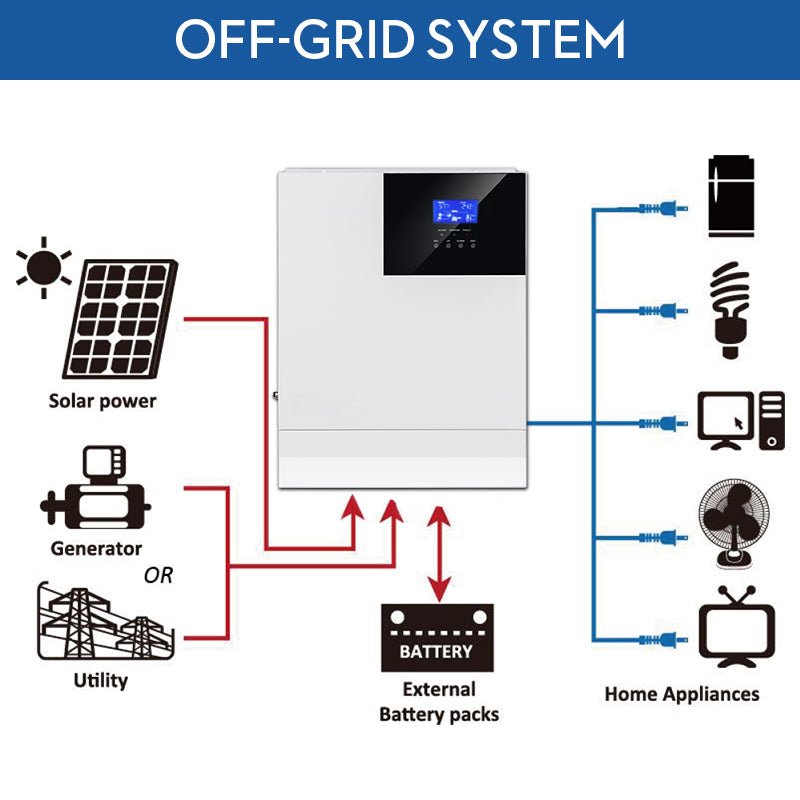

The is a new all-in-one hybrid solar charge inverter, which integrates solar energy storage &means charging energy storage and AC sine wave output. Thanks to DSP control and advanced controlal gorithm, it has high response speed, high reliability and high industrial standard. Four charging modes are optional, i.e. Only Solar, Mains Priority, Solar Priority and Mains & Solar hybrid charging;and two output modes are available, i.e. Inverter and Mains, to meet different application requirements.The solar charging module applies the latest optimized MPPT technology to quickly track the maximum power point of the PV array in any environment and obtain the maximum energy of the solar panel in real time.
Feature
1. Full digital voltage and current double closed loop control, advanced SPWM technology, output of pure sine wave.
2. Two output modes: mains bypass and inverter output; uninterrupted power supply
3. Available in 4 charging modes: Only Solar, Mains Priority, Solar Priority and Mains & Solar hybrid charging
4. Advanced MPPT technology with an efficiency of 90+%.
5. Designed with a LCD screen and 3 LED indicators for dynamic display of system data and operating status.
6. ON/OFF rocker switch for AC output control.
7. Power saving mode available to reduce no load loss

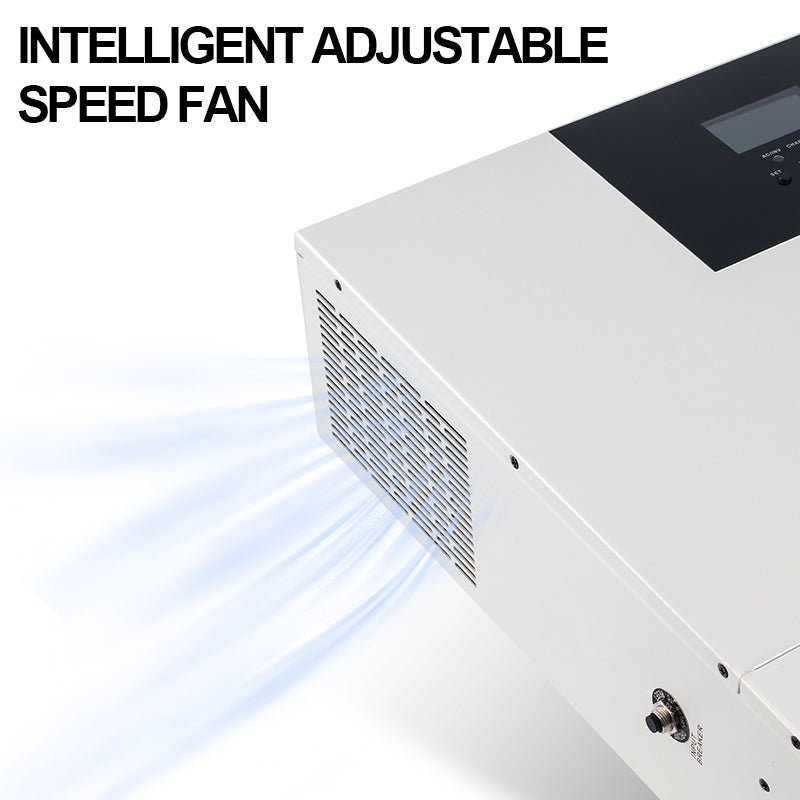

8. Intelligent variable speed fan to efficiently dissipate heat and extend system life.
9. Lithium battery activation by PV solar or mains, allowing access of lead acid battery and lithium battery
10. 360 all round protection with a number of protection functions.
11. Complete protections, including short circuit protection, over voltage and under voltage protection, overload protection, reverse protection, etc.

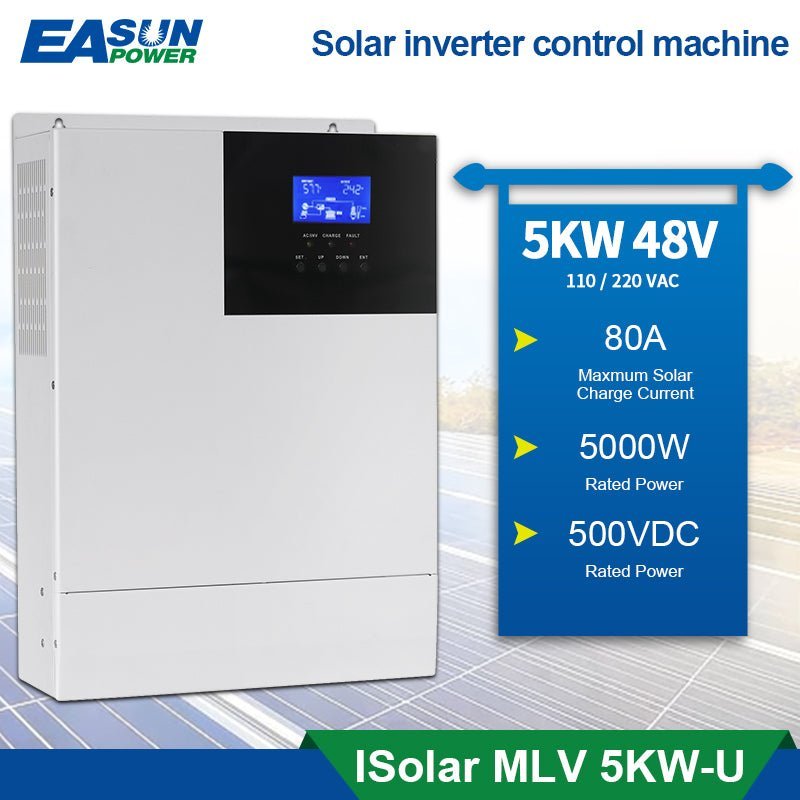

Model |
MLV 5KW-U |
AC mode |
|
Rated input voltage |
110/120Vac |
Input voltage range |
(90Vac-140Vac) ±2% |
Frequency |
50Hz/ 60Hz (auto-sensing) |
Frequency Range |
47±0.3Hz ~ 55±0.3Hz (50Hz)/57±0.3Hz ~ 65±0.3Hz (60Hz); |
Overload/short circuit protection |
Breaker |
Efficiency |
>95% |
Conversion time (bypass and inverter) |
10ms (Typical value) |
AC reverse protection |
yes |
Maximum bypass overload current |
63A |
Inverting mode |
|
Output voltage waveform |
Pure sine wave |
Rated output power(VA) |
5000 |
Rated output power(W) |
5000 |
Power factor |
1 |
Rated output voltage (Vac) |
120VAC |
Output voltage error |
±5% |
Output frequency range (Hz) |
50Hz ± 0.3Hz/60Hz ± 0.3Hz |
Efficiency |
>90% |
Overload protection |
(102%<load<110%) ±10%: reporting error and turn off the output after 5 minutes; (110%<load<125%) ±10%: reporting error and turn off the output after 10 seconds; Load>125% ±10%: reporting error and turn off the output after 5 seconds; |
Peak power |
10000VA |
Loaded motor capacity |
4HP |
Output short-circuit protection |
Breaker |
Specification of bypass breaker |
63A |

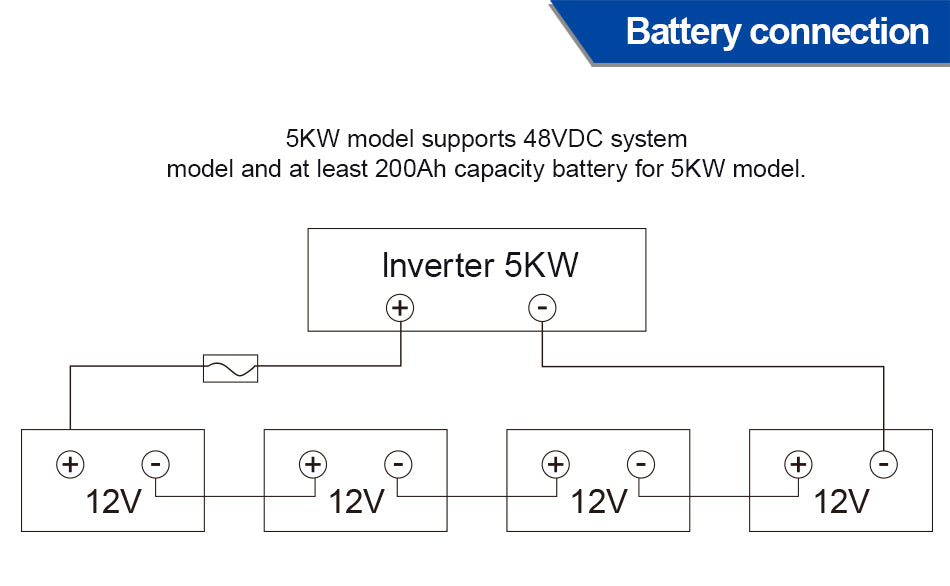

Rated battery input voltage |
48V (minimum start voltage 44V) |
Battery voltage range |
40.0Vdc~60Vdc ± 0.6Vdc (undervoltage alarm/turnoff voltage/overvoltage alarm/overvoltage restoration…settable LCD screen) |
Power saving mode |
Load ≤25W |
AC charge |
|
Battery type |
Lead acid or lithium battery |
Maximum charge current |
40A |
Charge current error |
± 5Adc |
Charge voltage range |
40~60Vdc |
Short-circuit protection |
Breaker and blown fuse |
Breaker specification |
63A |
Overcharge protection |
Turn off charge after 1min alarm |
Solar charge |
|
Maximum PV opencircuit voltage |
500Vdc |
PV operation voltage range |
120-500Vdc |
MPPT voltage range |
120-450Vdc |
Battery voltage range |
40-60Vdc |
Maximum output power |
5000W |
Charge current range of solar energy (settable) |
0-80A |
Charge short-circuit protection |
Blown fuse |
Wiring protection |
Inverse wiring protection |
Authentication specification |
|
Specification authentication |
CE(IEC62109)、RoHs |
EMC authentication grade |
EN61000 |
Operation temperature range |
-15°C to 55°C |
Storage temperature range |
-25°C ~ 60°C |
Humidity range |
5% to 95% (Conformal coating protection) |
Noise |
≤60dB |
Thermal dissipation |
Forced cooling with adjustable air speed |

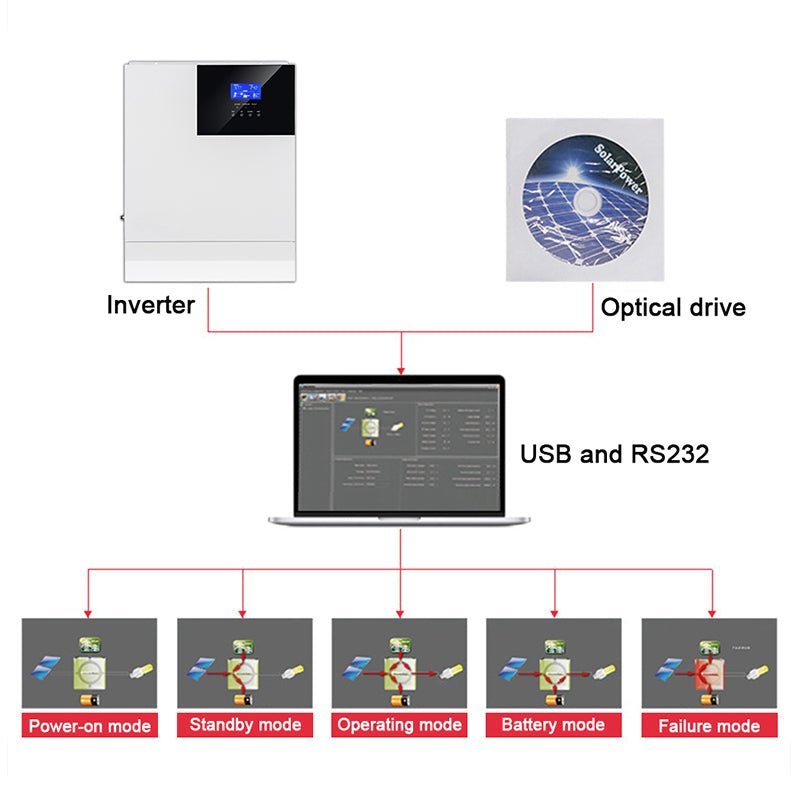

Communication interface |

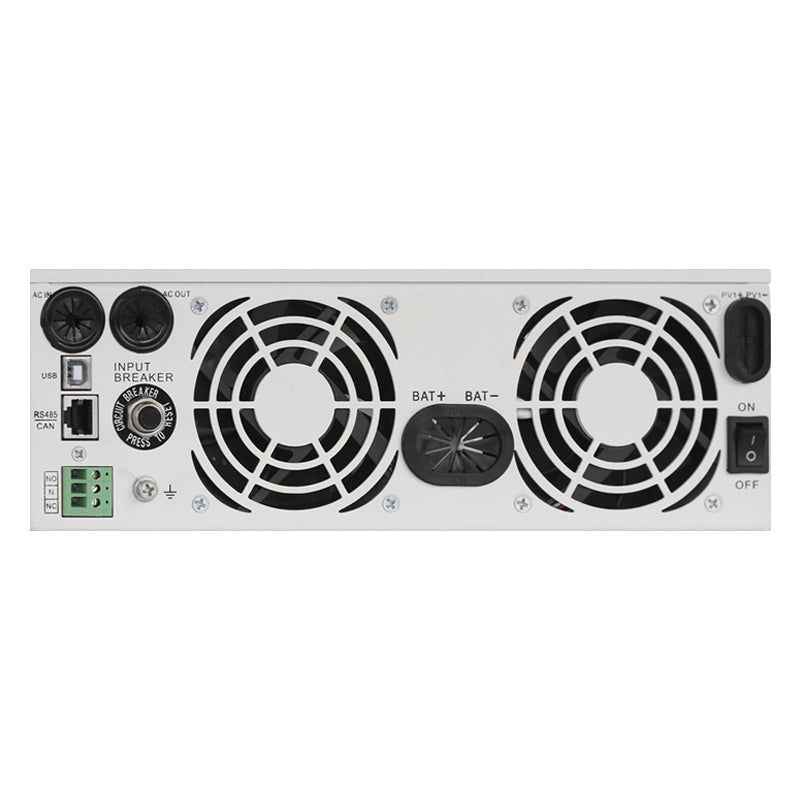

USB/RS485 (WiFi/GPRS)/dry node control |
Dimension (L*W*D) |
426mm*322mm*126mm |
Weight (kg) |
10.9 |
