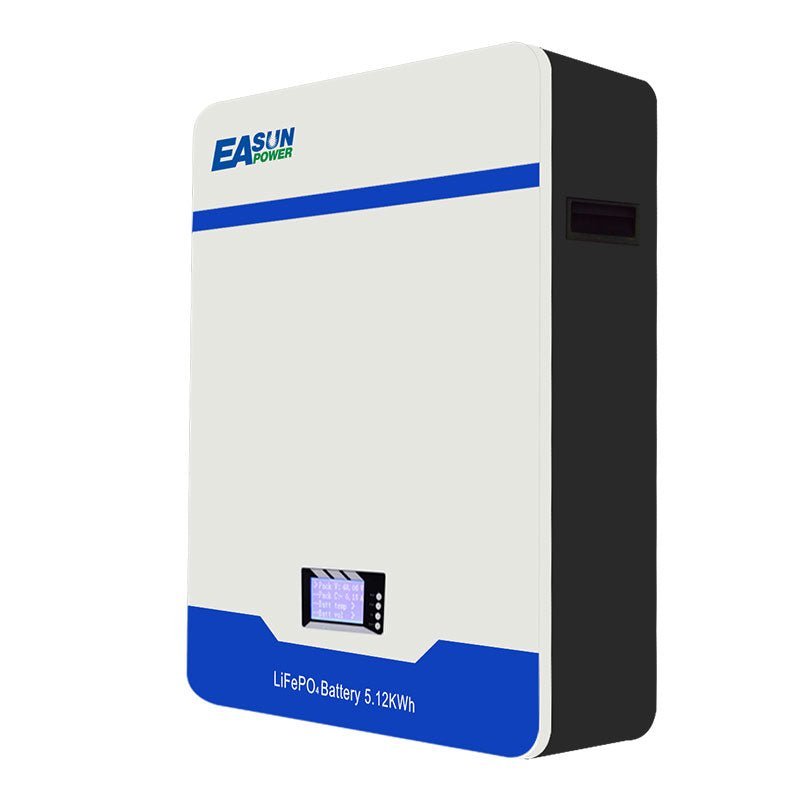

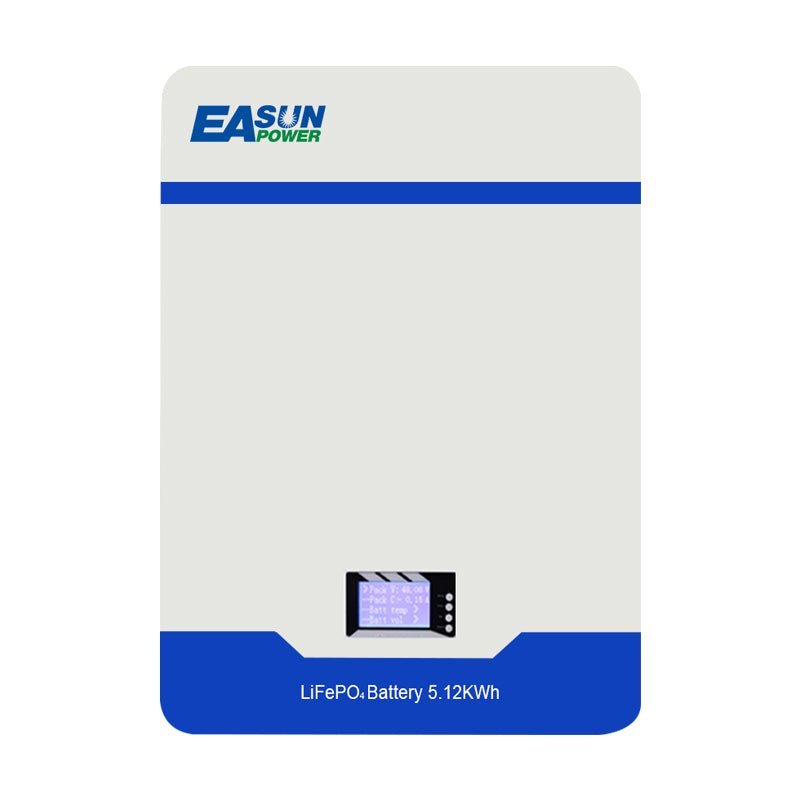

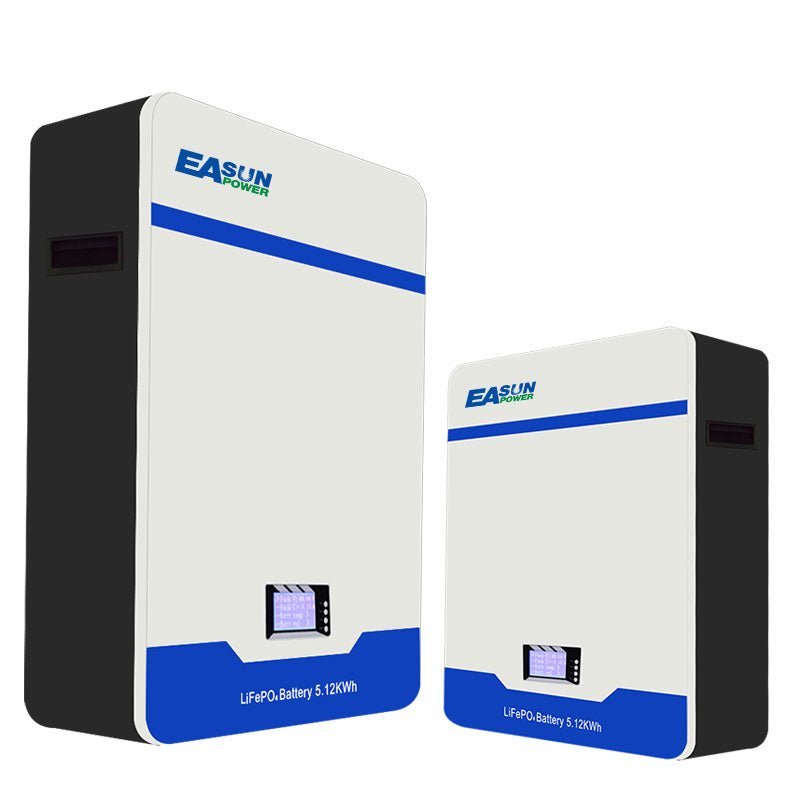

EASUN POWER 48V 51.2.V 100AH LiFePO4 Battery for 51.2V system with BMS system Power Storage Wall-mounted
Reliable Energy When and Where You Need It Most
100% DOD & 10-Year Lifespan: Offers 5000-15000 cycles and a 10-year lifespan, three times longer than lead-acid batteries.
Lightweight & Portable: Weighs 42 lbs, 1/3 of lead-acid batteries, with an energy density of 55.83Wh/lb, ideal for RVs, trolling motors, marine, and off-grid.
Higher Energy (2.56kWh): Equivalent to two 12V 100Ah batteries, supports 4P2S connections for 48V 400Ah setups, providing 20.48kWh energy.
Strict Protection & Fast Charging: Built-in 100A BMS safeguards against various faults. Operating temp: Charge 0°C50°C, Discharge -20°C60°C. Charges fully in 5 hours with a 29.2V 20A charger.
EV-Grade LiFePO4 Cells: GoldenMate 24V 100Ah battery uses UL-certified automotive-grade cells with high energy density, stable performance, and a 3% self-discharge rate.
The 24V 100Ah LiFePO4 battery delivers high energy density, long cycle life, and excellent performance. Ideal for wheelchairs, RVs, camping, marine, golf carts, trolling motors, home energy storage, computer backup, off-grid, solar, and wind energy systems
-
Main Features:
Overcharge detection function.
Over discharge detection function.
Over current detection function.
Short detection function.
Temperature detection function.
Balance function.
Communicate function.
Alarm function.
Total capacity function.
Storage history function.
|
Model |
100AH |
200AH |
|
Nominal Voltage |
51.2V |
51.2V |
|
Nominal Capacity |
100AH |
200AH |
|
Effciency |
≥96% |
≥96% |
|
lnner Resistance |
10mΩ |
7mΩ |
|
Cell Type |
LiFePO4 |
LiFePO4 |
|
Charge Voltage |
58.4V |
58.4V |
|
Standard Charging Current |
20A |
40A |
|
Max.Continuous Charging Current |
100A |
100A |
|
Standard Discharge Current |
20A |
40A |
|
Continuous Discharge Current |
100A |
100A |
|
Peak Discharge Current |
200A(3S) |
|
|
Discharge Cut-off Voltage |
42V |
|
|
Charge Temperature Range |
0~60°C |
|
|
Discharge Temperature Range |
-10°C~65°C |
|
|
Storage Temperature Range |
-5~40°C |
|
|
Storaqe Humidity |
65±20％HR |
|
|
Size(LxWxH) |
440×170×560mm |
440×206×670mm |
|
Package Size (L×W×H) |
625×520×335mm |
750×520×385mm |
|
Shell Material |
SPCC |
|
|
Net Weight |
42kg |
76kg |
|
Gross Weight |
53kg |
91kg |
|
Package Method |
1pcs per carton |
|
|
Cycle Life |
≥6000 times |
|
|
Self Discharge |
2% per month |
|
|
SOC Indication |
LED Light& LCD Screen |
|
|
Communication Protocol |
RS485/CAN |
|
|
Matching Inverter |
Growatt, Goodwe, Deye, Luxpower, SRNE etc |
|
Reliable Energy When and Where You Need It Most
100% DOD & 10-Year Lifespan: Offers 5000-15000 cycles and a 10-year lifespan, three times longer than lead-acid batteries.
Lightweight & Portable: Weighs 42 lbs, 1/3 of lead-acid batteries, with an energy density of 55.83Wh/lb, ideal for RVs, trolling motors, marine, and off-grid.
Higher Energy (2.56kWh): Equivalent to two 12V 100Ah batteries, supports 4P2S connections for 48V 400Ah setups, providing 20.48kWh energy.
Strict Protection & Fast Charging: Built-in 100A BMS safeguards against various faults. Operating temp: Charge 0°C50°C, Discharge -20°C60°C. Charges fully in 5 hours with a 29.2V 20A charger.
EV-Grade LiFePO4 Cells: GoldenMate 24V 100Ah battery uses UL-certified automotive-grade cells with high energy density, stable performance, and a 3% self-discharge rate.
The 24V 100Ah LiFePO4 battery delivers high energy density, long cycle life, and excellent performance. Ideal for wheelchairs, RVs, camping, marine, golf carts, trolling motors, home energy storage, computer backup, off-grid, solar, and wind energy systems
