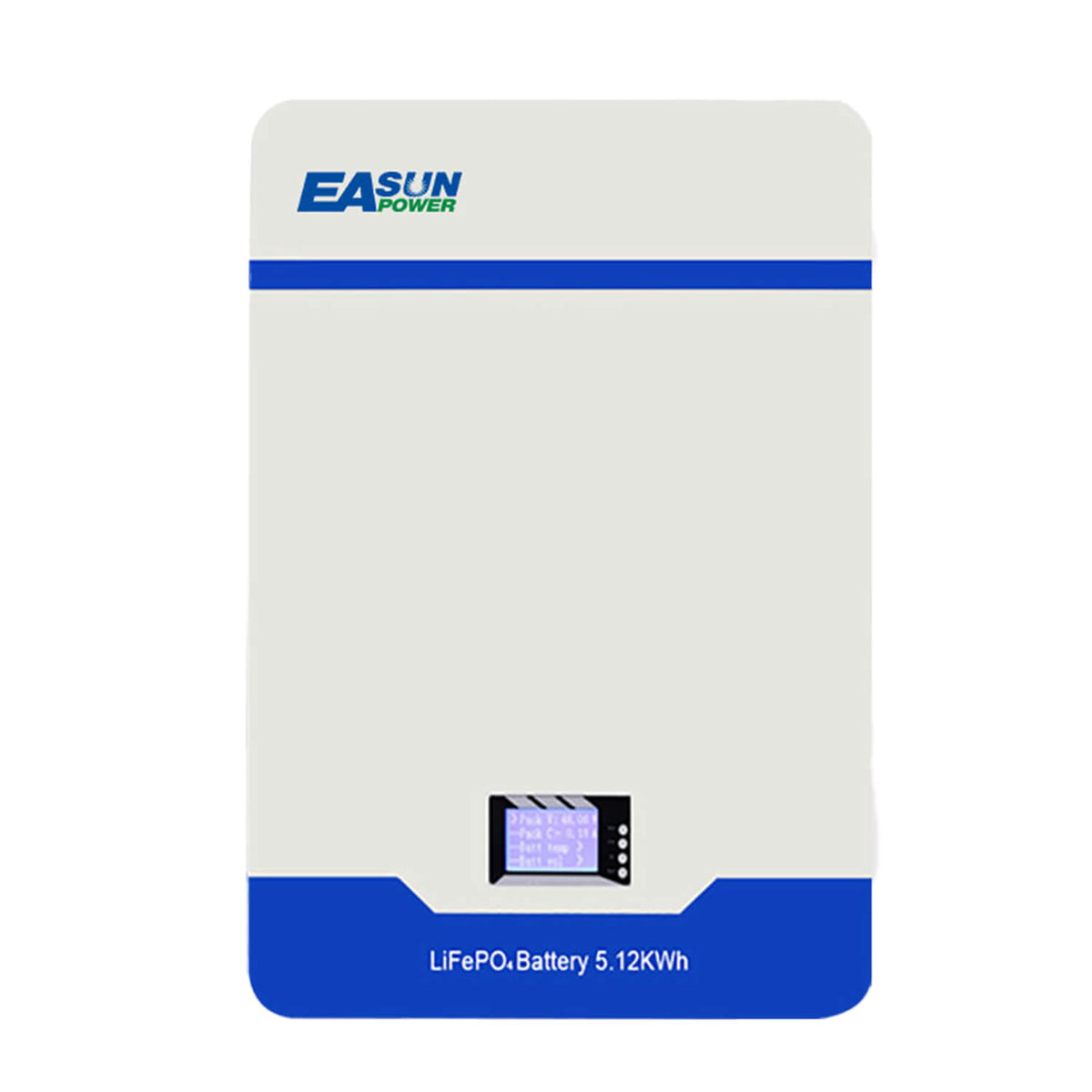

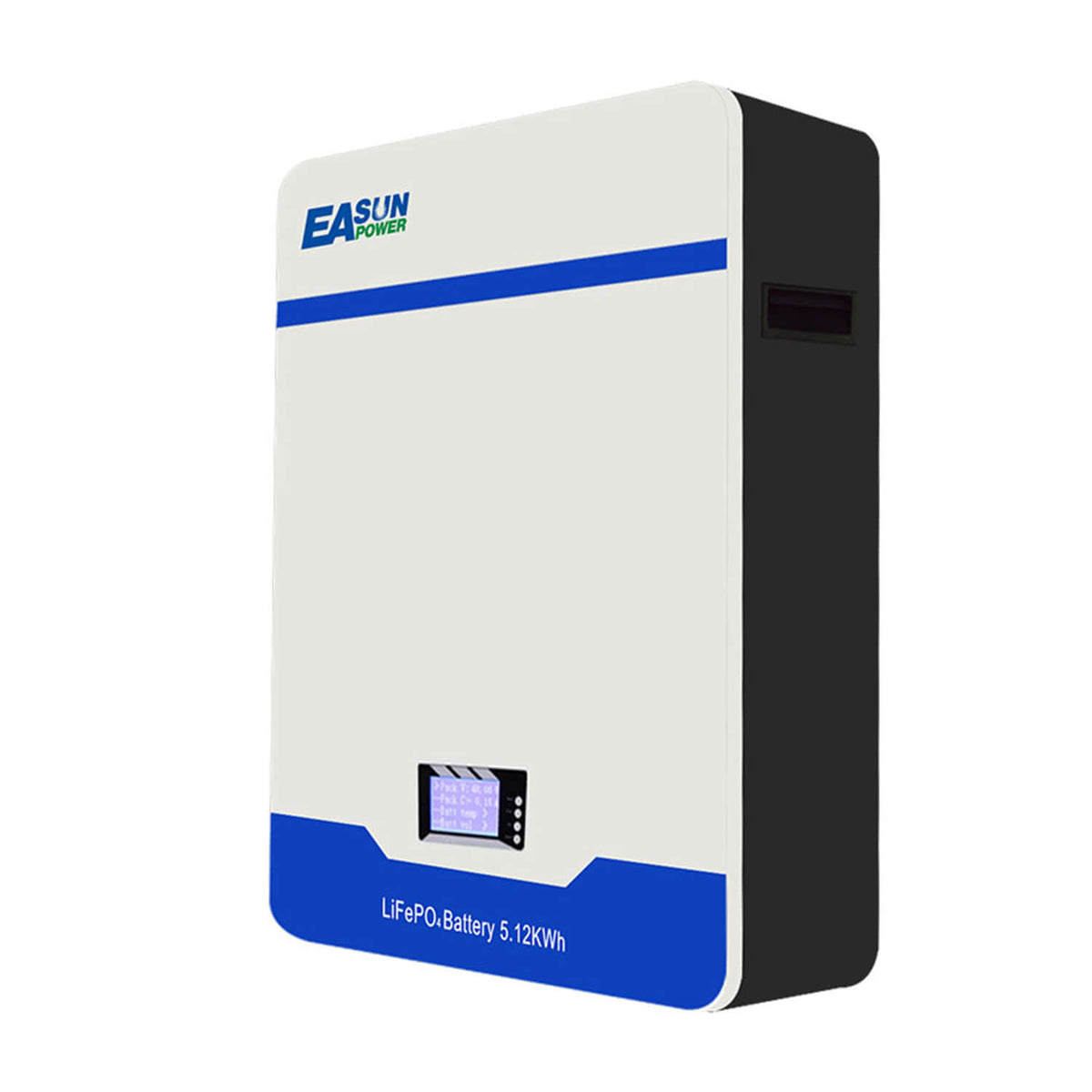

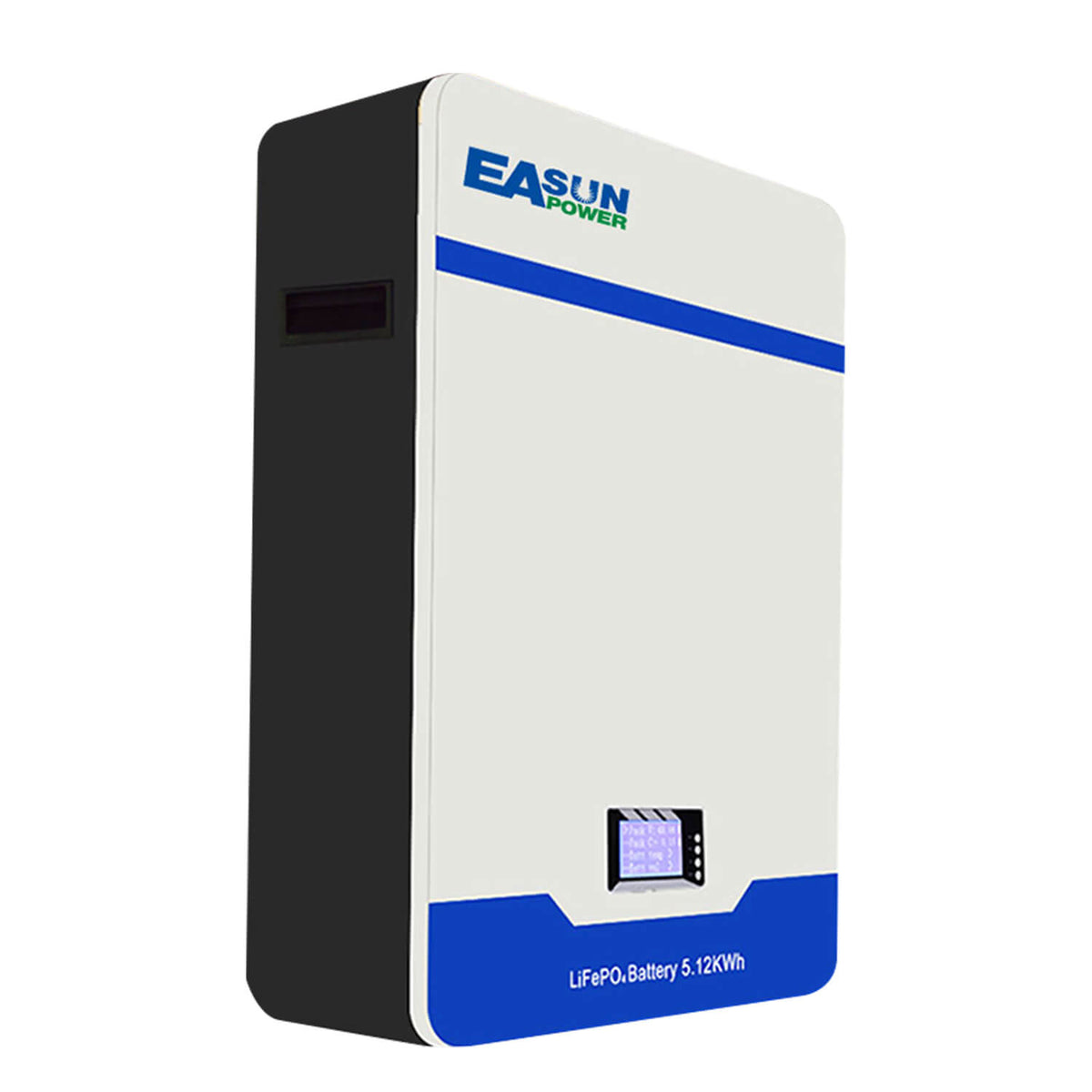

5.12kWh 51.2V 100Ah Wall-Mounted LiFePO4 Battery for Home Solar Storage | EASUN

(0)
$1,169.99
🏠 Wall Mounted Space Saving Design
🔋 5.12kWh Home Energy Storage
♻️ 6000+ Cycles Long Life LiFePO4
🛡️ Smart BMS 100A Protection
🔗 CAN / RS485 Smart Communication
📈 Expandable Up to 15 Batteries
Reliable 5.12kWh Home Battery Storage
Compact wall-mounted energy storage for home backup, solar systems, and off-grid applications.
  • 5.12kWh Capacity: 51.2V 100Ah LiFePO4 battery.
  • 6,000-Cycle Life: Built for long-term daily use.
  • Smart BMS: Voltage, current, and temperature protection.
  • 50A Rated / 100A Max: Supports compatible 48V systems.
  • Expandable to 15 Batteries: Add capacity as your energy needs grow.
  • CAN / RS485 Communication: Integrates with compatible inverters.
  • Wall-Mounted Design: Saves valuable floor space.
  • Hardware and Cables Included: Ready for professional installation.
In stock
Usually ships within 24 hours
🚚 Fast & Free U.S. Shipping

Stocked locally in U.S. warehouses. Free shipping nationwide with delivery to your door in 2–5 business days.

🔄 30-Day Risk-Free Trial

Enjoy hassle-free 30-day returns. Backed by an official product warranty and 24/7 dedicated technical after-sales support.

🛡️ Certified Safety & Compliance

Engineered to meet UL 1741 and FCC Part 15 Class B standards. Contact us directly to receive full certification documents for local utility permitting.

Our batteries come with a 5-year warranty, which can be extended to 7 years total upon product registration. Accessories are covered by a 1-year warranty, and like-new (refurbished) batteries include a 1-year warranty.

For full terms, conditions, and claim details, please visit:

Warranty Policy

We offer free shipping within the continental U.S. via UPS Ground or FedEx, with orders typically processed in 1–2 business days and delivered within 2–5 business days. Large products such as 12V 628Ah, 48V 314Ah batteries, or 12kW inverters are shipped by truck (LTL) and require signature upon delivery. After order confirmation, we will contact you by email to confirm shipment, and transportation arrangements typically take about 48 hours. Please note that we do not ship to Alaska, Hawaii, Puerto Rico, or PO Box addresses. Delivery times may vary due to external factors such as carrier delays or weather conditions.

For complete details, please visit:
Shipping Policy.

EASUN 12kW 48V Split-Phase Hybrid Solar Inverter User Manual

Keep Essential Home Power Ready When the Grid Goes Down

5.12kWh Energy Storage | 51.2V 100Ah LiFePO4 Battery | 6,000+ Cycle Life | Expandable Up to 15 Batteries

Store energy for outages, nighttime use, and everyday home power management. Pair this 51.2V 100Ah LiFePO4 battery with a compatible 48V inverter to build a reliable and expandable home backup system.

EASUN 5.12kWh 51.2V 100Ah LiFePO4 home battery backup power system

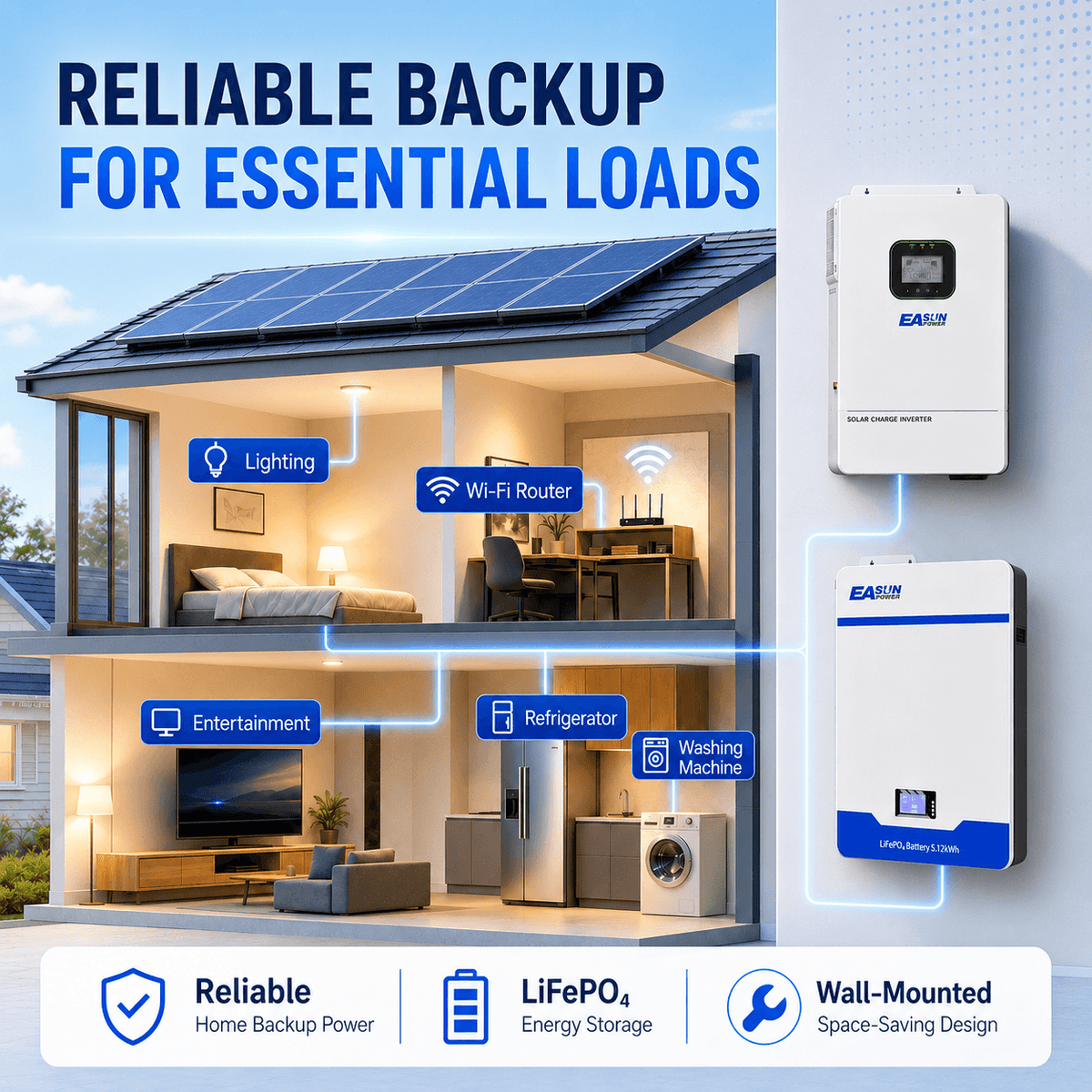

What Happens When the Power Goes Out?

When the power goes out, your refrigerator, WiFi, home office equipment, lighting, and security systems can all stop working at once. A properly configured home battery backup system provides stored energy to help keep food cold, maintain communication, support essential work devices, and keep selected lights, cameras, and alarms running until utility power is restored.

EASUN home battery backup power for refrigerator WiFi lights home office and security during power outage

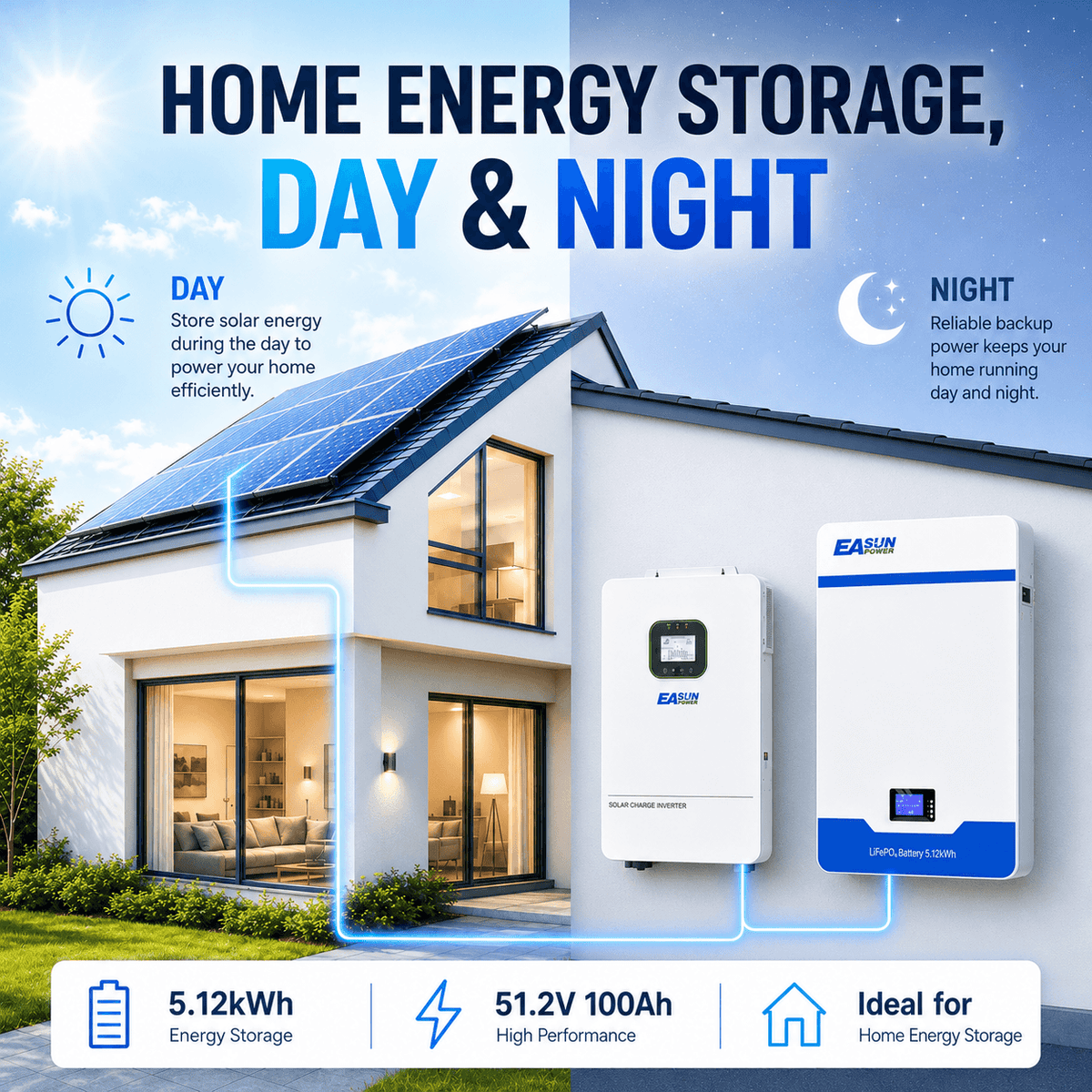

Store Energy Today. Use It When You Need It.

Store solar energy during the day and use it when your home needs it most. Your solar panels generate power, a compatible hybrid inverter manages the system, and the EASUN 5.12kWh battery stores extra energy for use at night, during outages, or when grid power is unavailable—giving you more control and greater energy independence.

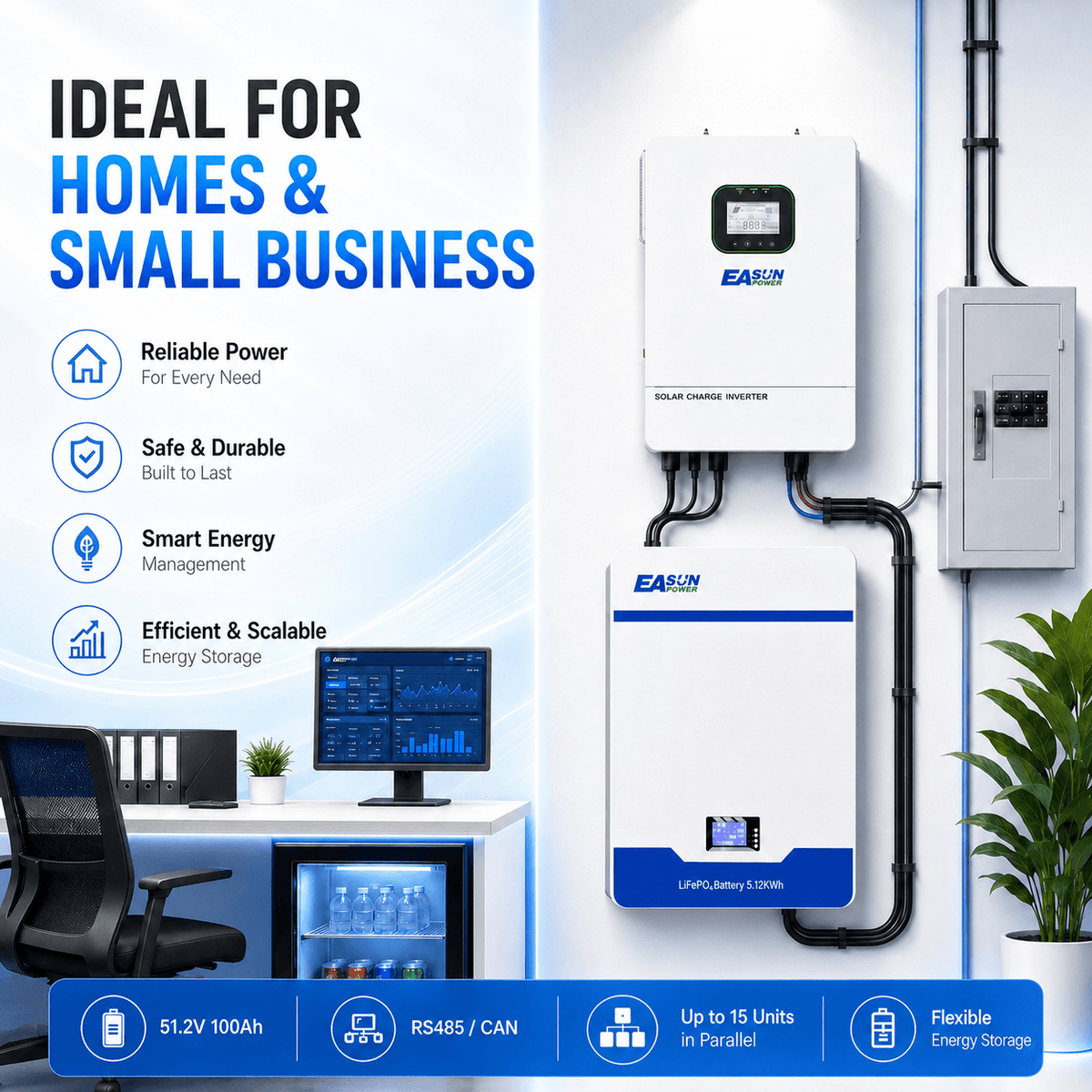

EASUN solar energy storage system with 5.12kWh LiFePO4 battery and compatible hybrid inverter

A Quieter, Lower-Maintenance Alternative to Fuel-Only Backup

Gas generators can provide emergency power, but they require fuel, outdoor operation, engine maintenance, and regular testing.

When paired with a compatible inverter, the EASUN LiFePO4 battery provides a clean and quiet way to store electrical energy for home backup and solar applications.

EASUN LiFePO4 battery backup system as a quiet clean alternative to fuel generator backup

How Much Can a 5.12kWh Battery Power?

A 5.12kWh battery stores 5,120 watt-hours of nominal energy, providing reliable backup power for essential home appliances and everyday energy needs.

With a 51.2V 100Ah LiFePO₄ battery, the EASUN home energy storage system helps keep critical devices running during power outages, while supporting daily activities such as refrigeration, communication, entertainment, and small appliance use.

Estimated runtime with EASUN 5.12kWh 51.2V 100Ah LiFePO4 battery for home appliances

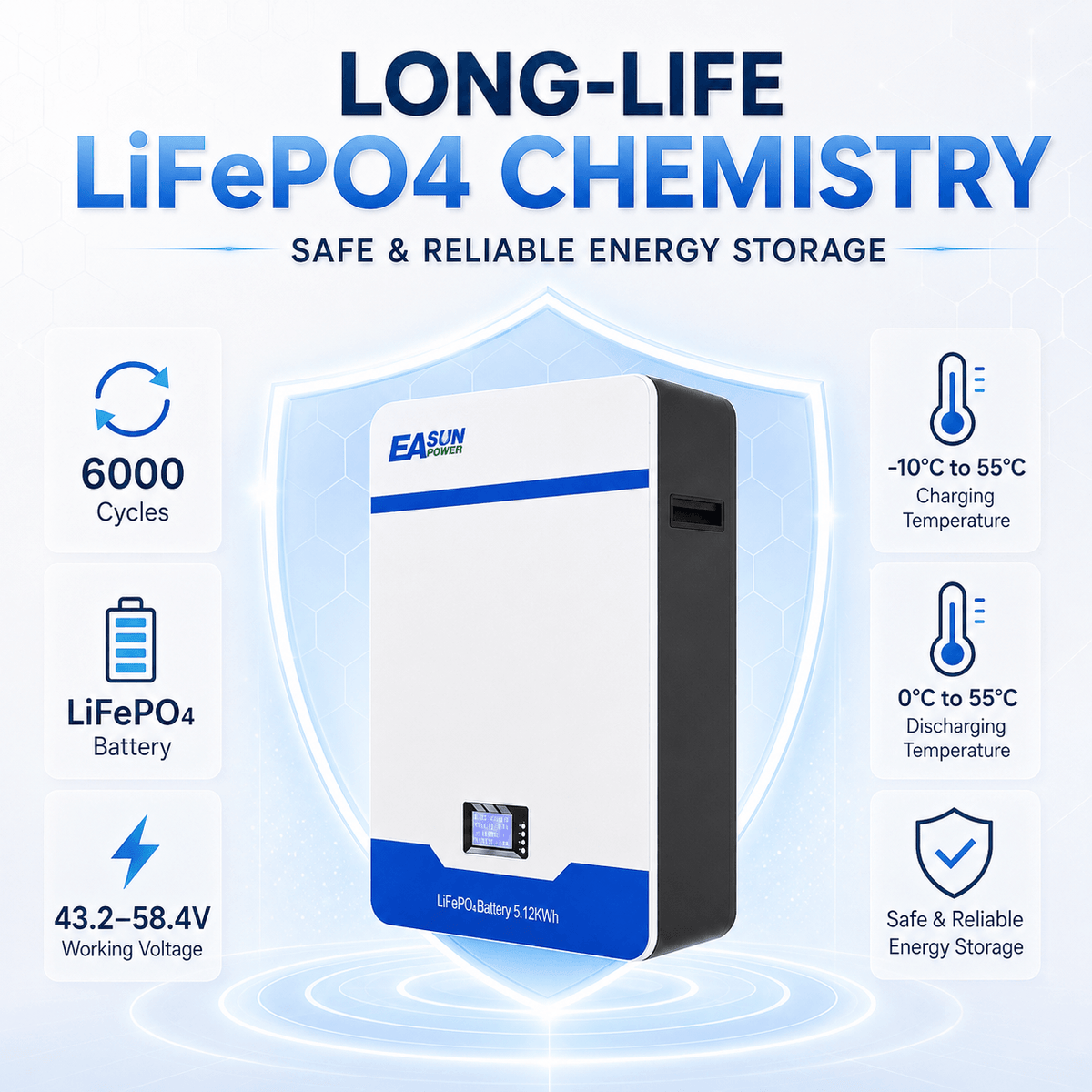

Built for Reliable Home Energy Storage

Safe, durable, and intelligent battery technology designed to power your home for years.

EASUN 5.12kWh LiFePO4 battery designed for reliable long-term home energy storage

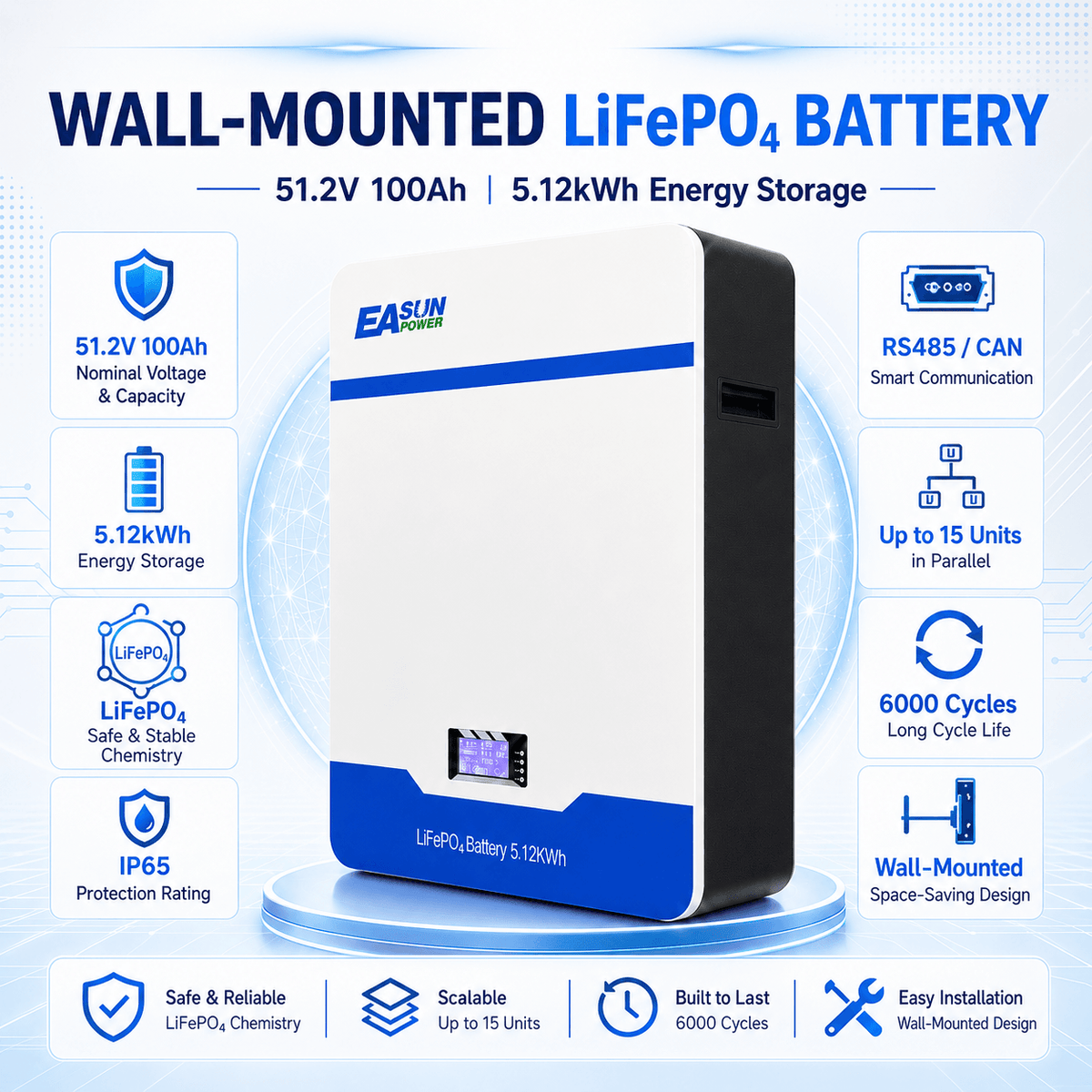

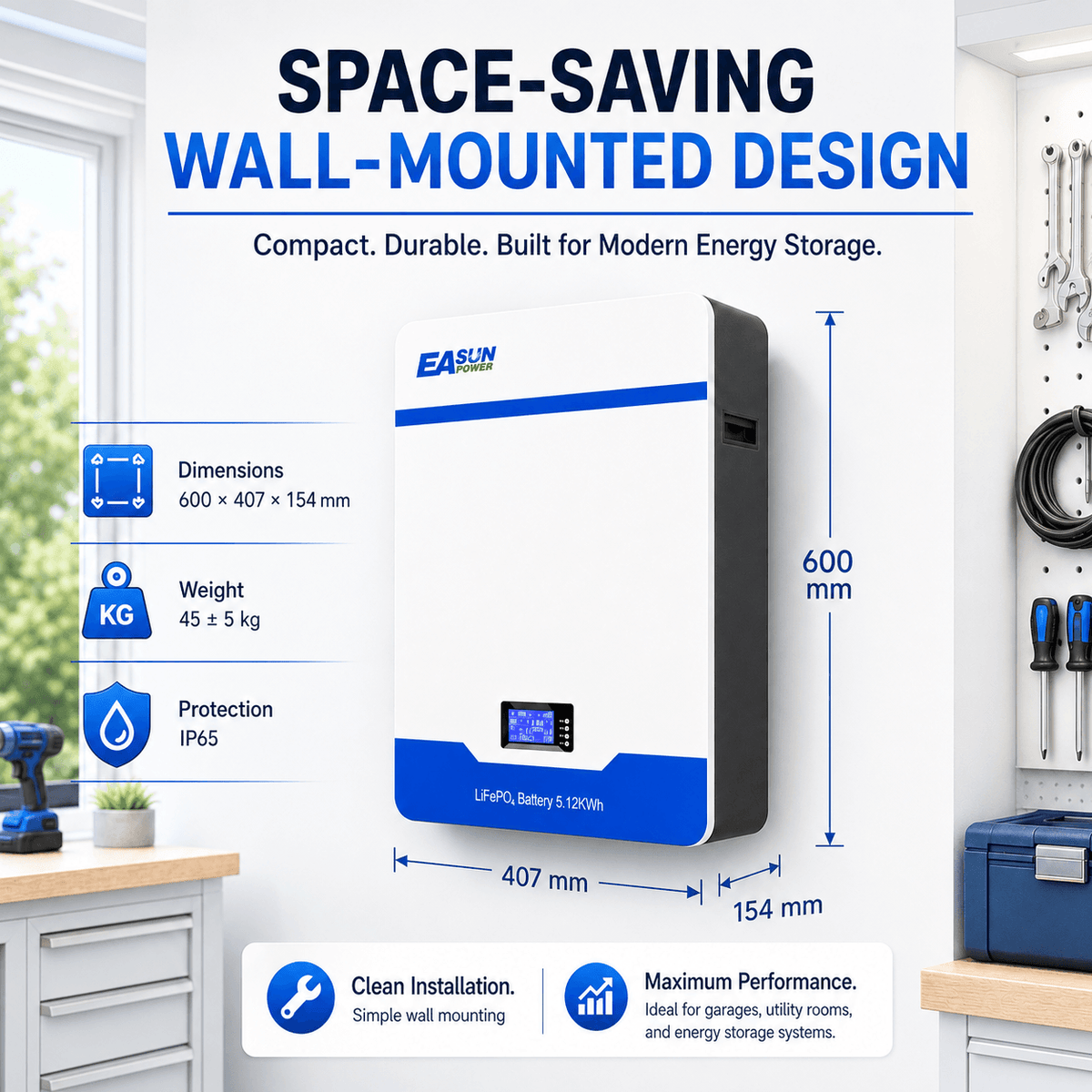

Powerful Energy Storage That Fits Your Home

A space-saving wall-mounted design keeps your backup power system organized while preserving valuable floor space.

EASUN wall-mounted home energy storage battery installation for garage utility room and home backup systems

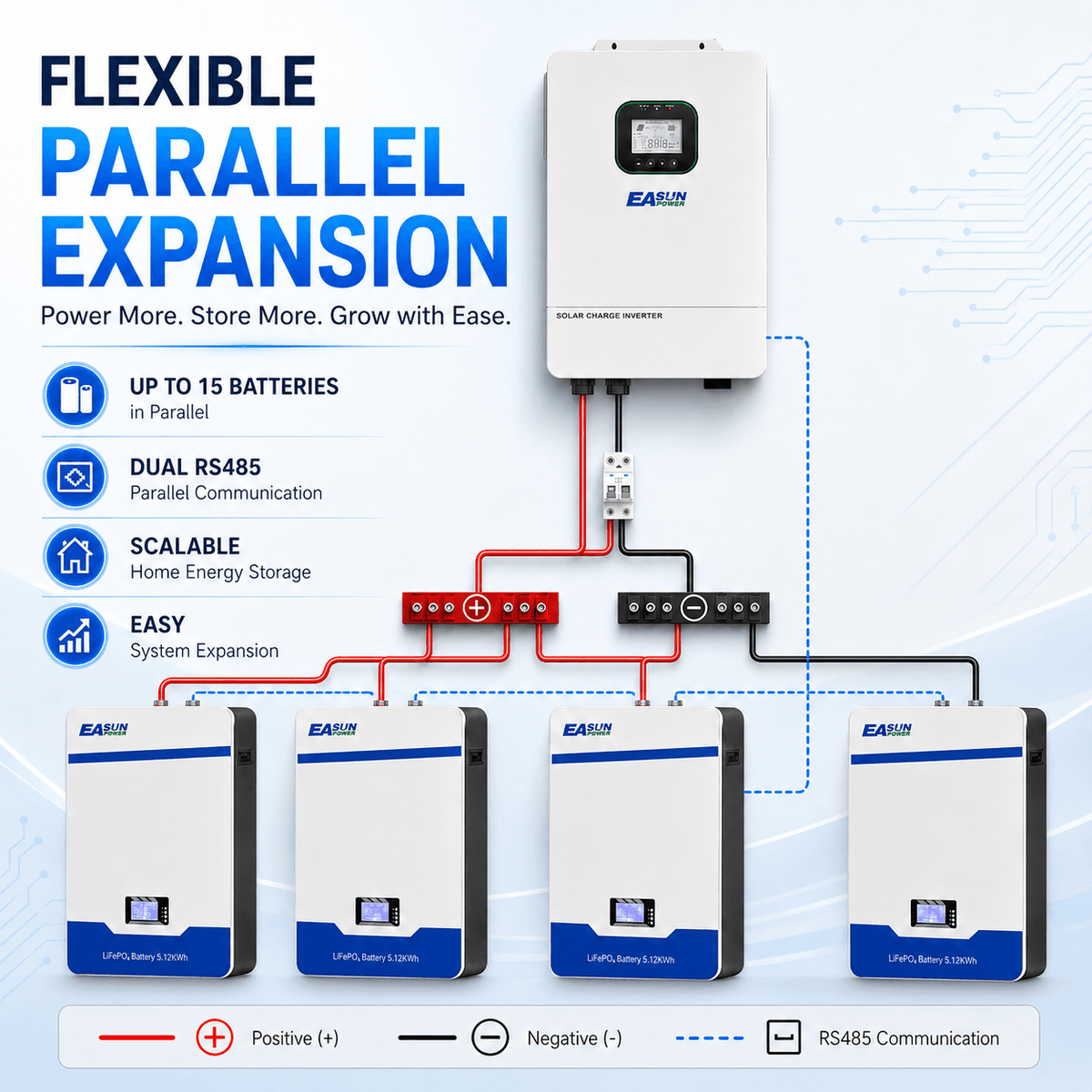

Start Small. Expand as Your Energy Needs Grow.

One 5.12kWh battery can support selected essential loads. As your household energy needs increase, additional compatible batteries can be connected in parallel.

EASUN 5.12kWh LiFePO4 battery storage expansion parallel system for growing home energy needs

Built for the Way You Use Energy

Home Backup Power

Keep selected essential circuits available during utility outages.

Solar Energy Storage

Store available solar energy during the day and use it after sunset.

Off-Grid Power Systems

Build a reliable battery bank for cabins, remote properties, and other locations without dependable grid access.

Everyday Energy Management

Use stored energy according to the charging and discharge settings available through your compatible inverter system.

Expandable Residential Storage

Add more battery capacity as your backup requirements, solar array, or household consumption grows.

Wide Compatibility with Top Inverter Brands

This wall-mounted battery works seamlessly with popular inverter brands like Pylon, Deye, GoodWe, Growatt, SRNE, SMA, Victron, Megarevo, and Sofar. This compatibility ensures it integrates easily into your existing solar panel system, giving you more options for setup.

EASUN 48V LiFePO4 battery compatibility with popular inverter brands including Deye Growatt Victron SMA Sofar and GoodWe

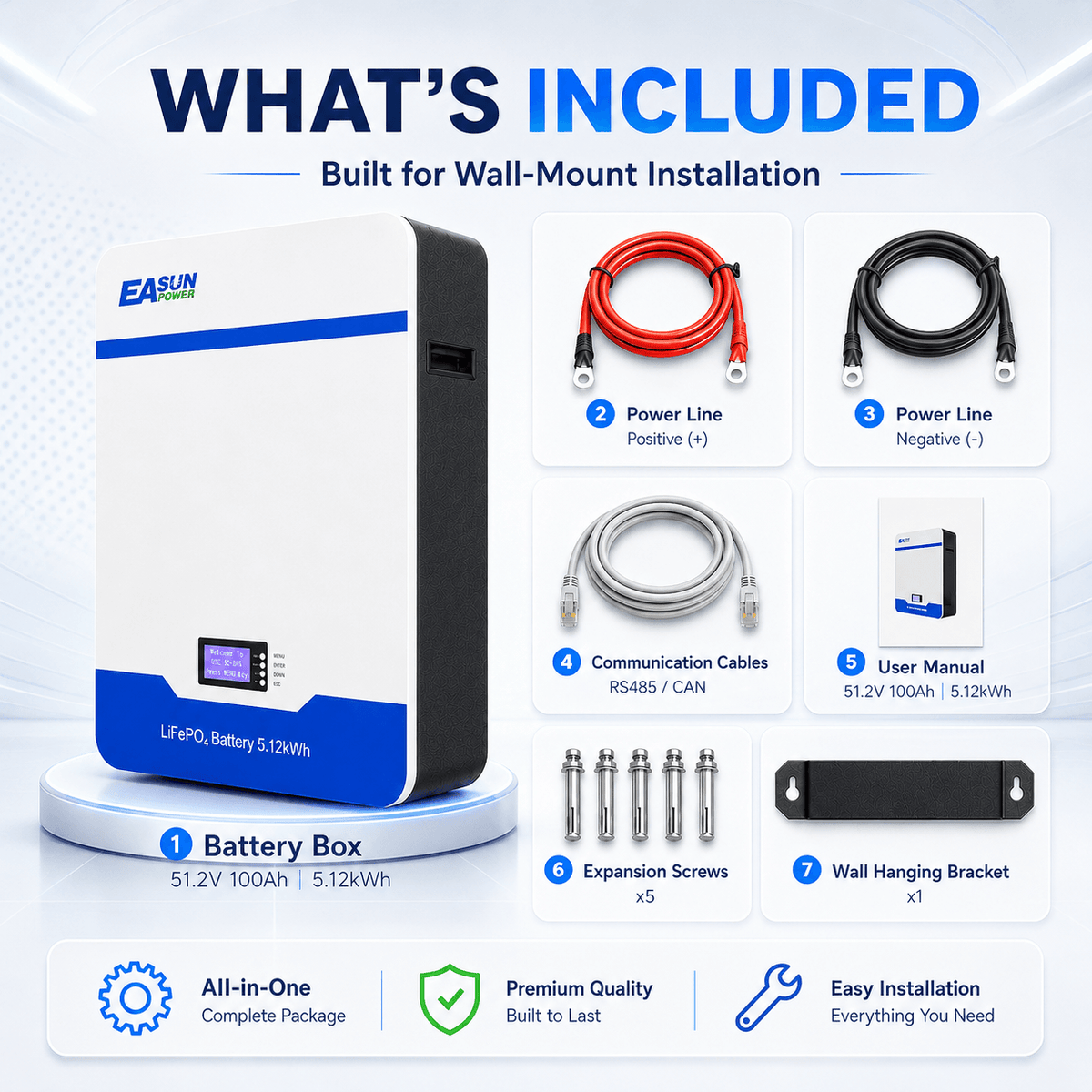

EASUN 5.12kWh LiFePO4 battery package and accessories

EASUN 5.12kWh LiFePO4 Battery Specifications

Product ModelIBattery-EA-51.2V-100AH
Battery TypeWall-Mounted LiFePO4 Battery
Cell TypeLFP 3.2V / 100Ah
Cell Configuration16S1P
Nominal Voltage51.2V
Nominal Capacity100Ah
Nominal Energy5.12kWh
Working Voltage Range43.2–58.4V
Rated Charge Current50A
Rated Discharge Current50A
Maximum Charge Current100A
Maximum Discharge Current100A
Cycle Life6,000 Cycles
CommunicationRS485 / CAN
Parallel CommunicationDual RS485
Maximum Parallel BatteriesUp to 15 Units
Enclosure ProtectionIP65
Charging Temperature-10°C to 55°C
Discharging Temperature0°C to 55°C
Dimensions600 × 407 × 154 mm
Weight45 ± 5 kg
InstallationWall Mounted

Safety & Installation Note

The EASUN 5.12kWh LiFePO4 Battery is designed for residential solar storage and backup power applications.

For safe and reliable operation:

  • Install the battery on a suitable wall structure or mounting surface;
  • Use proper DC protection devices between the battery and inverter;
  • Verify correct positive and negative connections before powering the system;
  • Use compatible 48V/51.2V inverters with proper BMS communication;
  • Follow local electrical codes and installation requirements.

For expanded battery systems, connect only compatible battery units and follow the recommended parallel configuration.

Always refer to the official user manual before installation.

EASUN 5.12kWh 51.2V 100Ah LiFePO4 Wall-Mounted Battery User Manual

Certification Information

Certification listed in product specification: UL STD.1741 and FCC Part 15 Class B. For grid-related installation, please confirm local utility, AHJ, and permitting requirements before installation.

5.12kWh Home Battery FAQ

Is a 5kWh battery enough to power a home?

A 5.12kWh battery can provide backup energy for selected household loads such as a refrigerator, WiFi router, lights, television, laptops, and security devices.

It is not necessarily enough to operate every appliance in an entire home at the same time. Actual backup capability depends on your inverter size, appliance power requirements, startup loads, and system configuration.

How long will a 5kWh battery last during an outage?

Runtime depends on the total amount of power being used.

A 500W average load represents approximately 10 hours of theoretical runtime from 5.12kWh of nominal energy. A 1,000W load represents approximately five hours before inverter losses, battery reserve settings, temperature, and other system factors are considered.

Can this battery power my refrigerator?

Yes, it can support a refrigerator when paired with a correctly sized compatible inverter.

Refrigerator energy consumption and compressor startup power vary by model, so the inverter must be able to handle both continuous power and startup demand.

Can I use this battery without solar panels?

Yes. The battery may be charged from supported sources when connected to a compatible inverter/charger.

Depending on the inverter, charging sources may include utility power, a generator, or solar panels. The battery must not be connected directly to ordinary household AC power.

Does the battery include an inverter?

No. This is a 51.2V LiFePO4 energy storage battery.

A compatible 48V inverter or inverter/charger is required to convert battery power into household AC electricity and control charging, discharge, and backup operation.

Can this battery power 120V or 240V appliances?

The battery stores DC energy. The connected inverter determines the available AC voltage and output power.

To operate 120V or 240V appliances, choose a compatible inverter that supports the required U.S. output voltage, load power, and appliance startup demand.

Can I connect more than one battery?

Yes. Up to 15 compatible batteries can be connected in parallel, providing up to 76.8kWh of nominal storage.

Parallel systems require correct power cables, communication wiring, overcurrent protection, and system configuration.

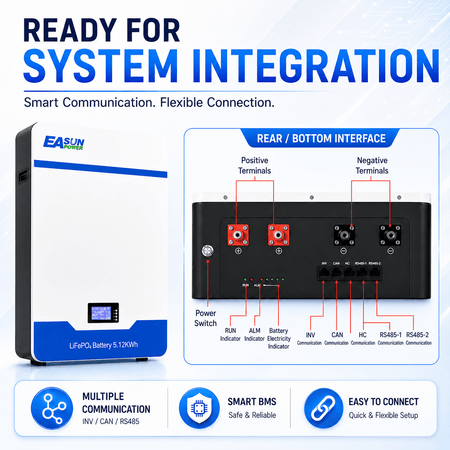

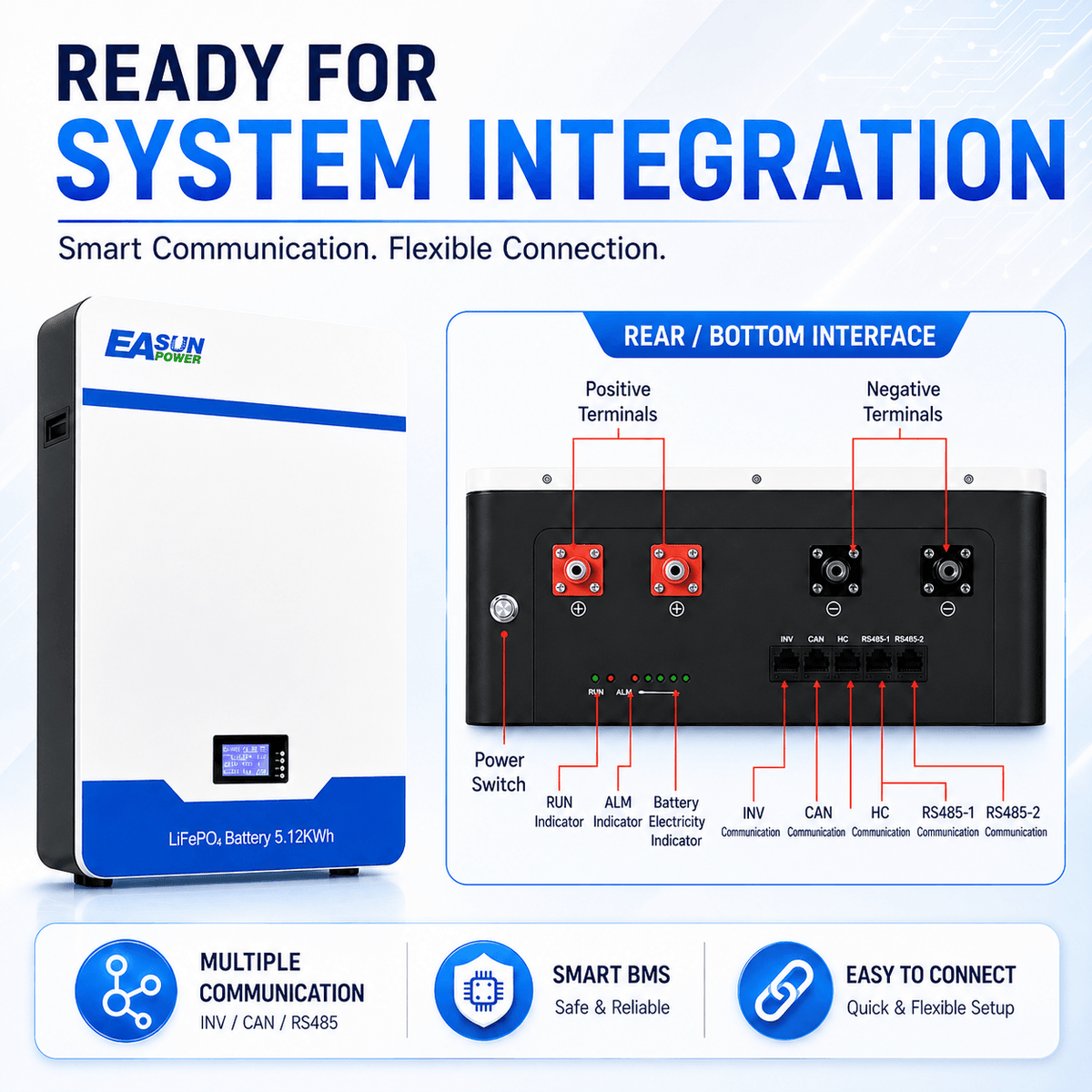

Does it communicate with my solar inverter?

The battery includes RS485 and CAN communication interfaces for supported inverter systems.

Compatibility is not determined by the physical connector alone. The inverter protocol, firmware, communication cable pinout, and battery settings must also match.

Is this a Tesla Powerwall alternative?

The EASUN 5.12kWh battery is a modular 48V LiFePO4 storage option for homeowners and installers building a customized solar battery or home backup system.

Unlike an all-in-one Powerwall system, it requires a separate compatible inverter, system protection equipment, and professional installation. It may be a practical alternative for buyers who prefer a flexible and expandable 48V battery system.

Where can I install the battery?

Common installation areas include garages, utility rooms, basements, and dedicated energy storage spaces.

The mounting surface must support the battery weight, and the installation must follow the product manual, ventilation requirements, local electrical codes, and applicable fire and building regulations.

Does the battery automatically power my home during an outage?

The battery stores energy, but the connected inverter controls backup operation.

When paired with a compatible hybrid inverter and a properly wired backup circuit, the system can be configured to use battery power when utility power is unavailable.
